Description
DESCRIPTION:

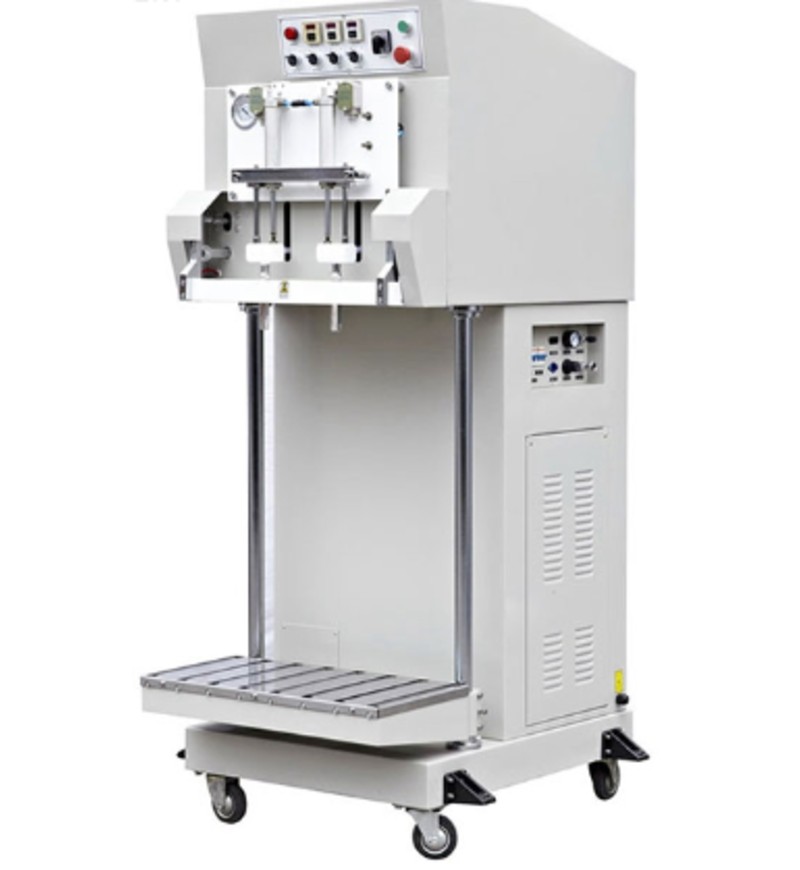

IA-1000L/DZQ series External Type Vacuum Packing Machine not only can do the process of sealing, but also vacuum extraction or inert gas flushing after vacuum cycle.
FEATURES:
External Type Vacuum Packing Machine has chamber less design with double gas nozzles, so its application is not limited by the size of vacuum chamber.
APPLICATION:
External Type Vacuum Packing Machine is suitable for package which has low demand on vacuum degree but high demand on the purity of inert-gas.
Model CE-1000DZQwith double heating system is suitable for thick plastic or compound bag.
TECHNICAL PARAMETER:
| Model | IA-1000L/DZQ |
| Voltage (V/Hz) | AC 415V/50 |
| Sealing power (W) | 1000 |
| Motor power (W) | 750 |
| Air compressor power (W) | 1100 |
| Sealing length (mm) | 1000 |
| Sealing width (mm) | 10 |
| Distance from sealing center to floor(mm) | 1250 |
| Vacuum pump rate (m3/h) | 20 |
| Film thickness (Single layer) mm | ≤ 0.18 |
| External dimension (LxWxH) mm | 980 x 945 x 1900 |
| Net weight (kg) | 255 |
