Description
MAIN DETAILS:
The servo motor system.
1. Clutch design, make the label tension force more stable, and easy to improve labeling precision.
2. Advanced color man-machine interface control system.
3. Germany Siemens PLC control, high reliability.
4. Use Germany, Japan magic eye.
5. Machine structure is simple, compact, easy to operation and maintenance.
6. Can add ribbon typewriter, or heat transfer machine and automatic send bottle opener (optional).
TECHNICAL PARAMETER:
| Model | IA-200/MT |
| Brand | IACHIEVE |
| Voltage | 220v 50/60Hz |
| Label width | 10-130mm |
| Label length | 15-200mm |
| Bottle diameter | Φ20-100mm |
| Paper roll diameter (Maximum) | Φ300mm |
| Inside of paper roll | Φ75mm |
| Label speed | 20-40 bottles/min |
| Labeling precision | ±1mm |
| Machine size (L x W x H) | 2000 x 1300 x 1500mm |
| Weight | 200kg |

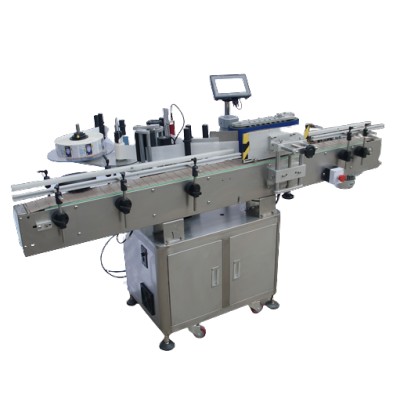

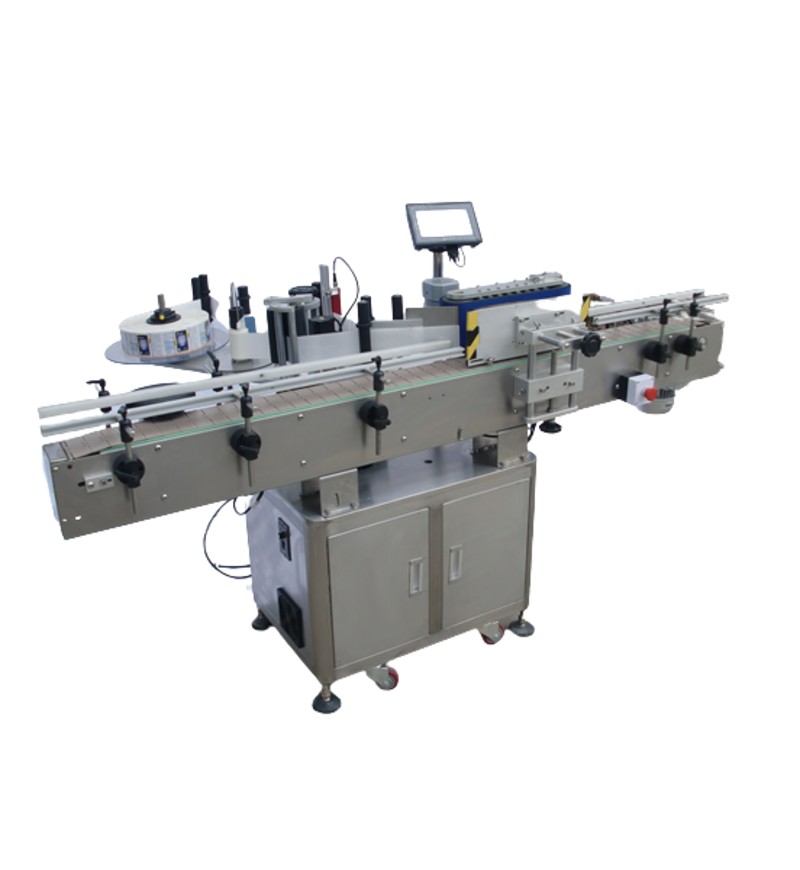

MACHINE DESIGN:
