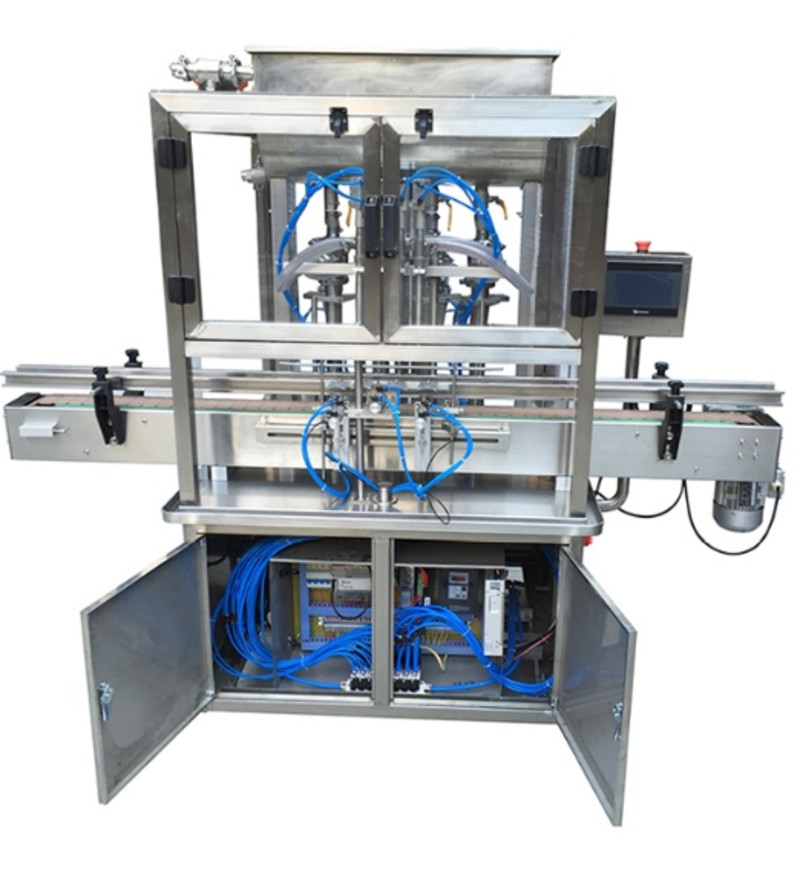

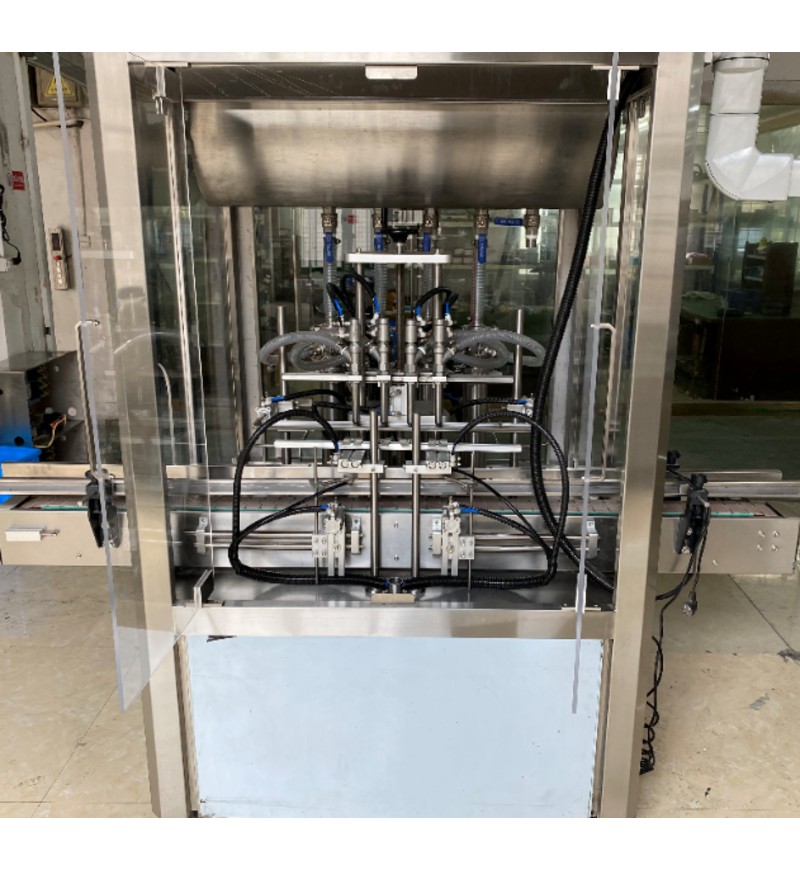

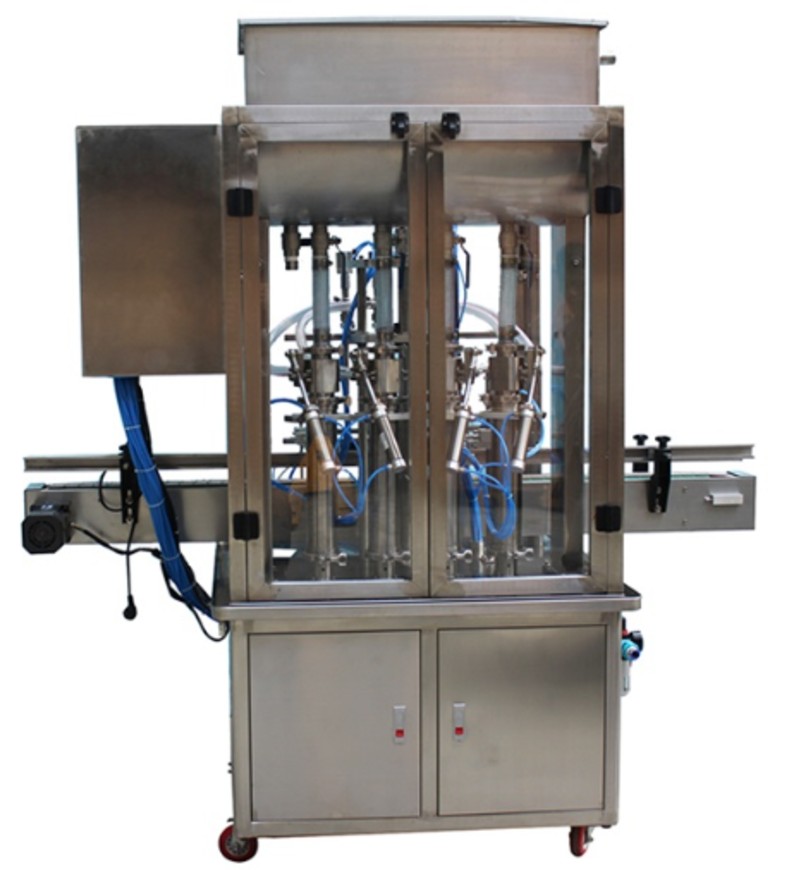

AUTOMATIC PASTE TYPE FILLING MACHINE (4 NOZZLE) IA-1000L/GCGA-4F

SKU IA-1000L/GCGA-4F Category Tag

This machine is applied for viscosity and paste filling similar like juice , milk, yogurt, cream, shampoo, liquid soap, lubricant, engine oil products. It is able to integrate to capping machine and labelling machine in bottling line, fully complete and intelligence control advantage.

Characteristics

Adopt volumetric piston pump, pneumatic control ss check valve to filling various kinds of liquid from light to medium heavy.

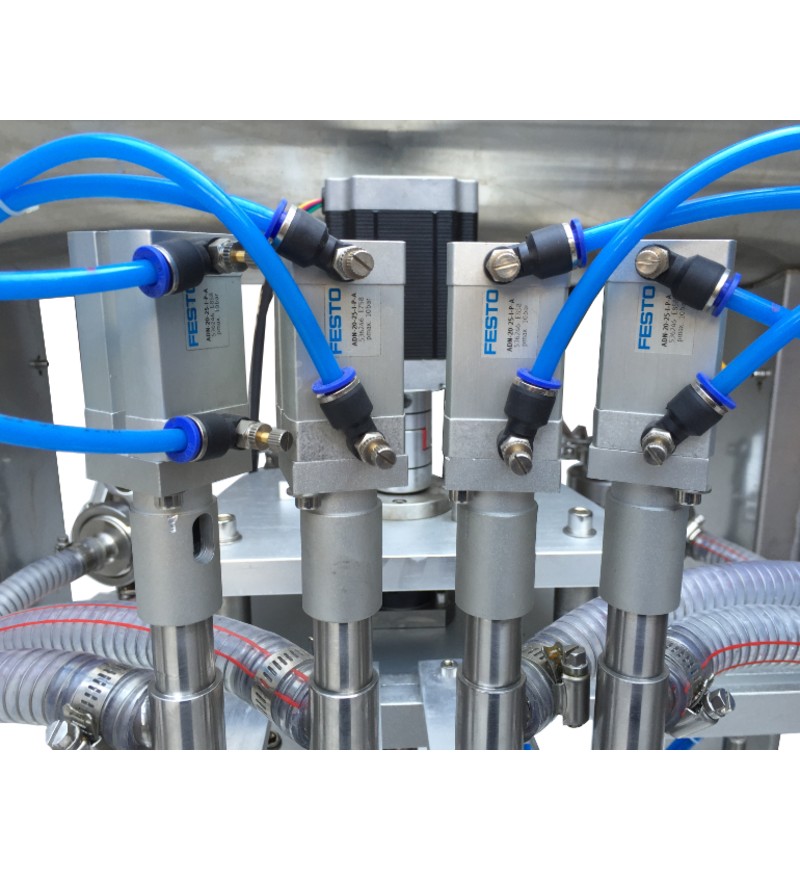

Pneumatic control piston pump, easy adjust filling volume.

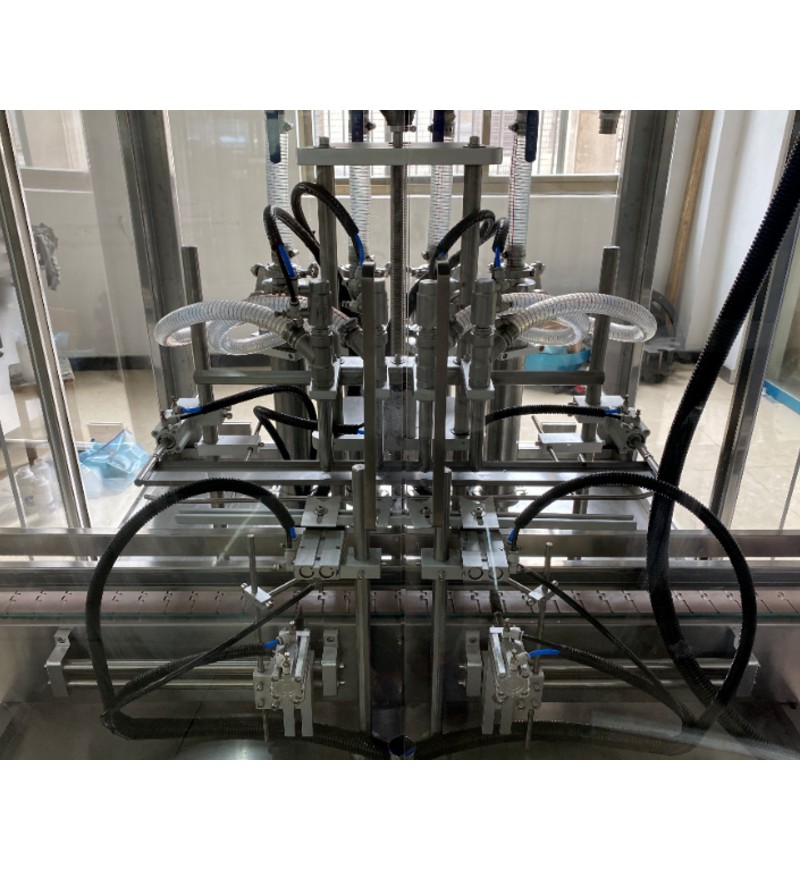

Auto shut on/off filling nozzle, prevent drop while filling.
Automatic tray collector under filling nozzle, to avoid dropping on bottle.
Convenient to take out component parts to clean and sterilize, adjust to fit to other bottle size with no change parts.
Frequency speed control, no bottle no fill intelligence.
Whole machine designed and manufactured accordance to GMP regulation.

Technical Parameter

Model IA-1000L/GCGA-4F
Filling head 4
Filling volume 50-500ml
Filling type Piston quantitative filling
Speed 15-20v/min
Filling accuracy ±1% (depends on products)
Material Stainless steel 304
Air pressure 0.4-0.7MPa
Voltage 220v 50Hz 500w
Air consumption 200-300l/min
Weight 700kg
Machine dimension 2200 x 1500 x 1850mm

Product Application

Type: lubricant oil, antifreeze, hydraulic oil, painting, laundry detergent, liquid detergent, liquid fertilizer, cream, skin care, sanitizer and so on.
