Description
INTRODUCTION:
- The electric heating tube is an M-type electric heating tube, which is evenly covered in the oil, so that the oil is heated evenly and the heating speed is fast
2. There will be no continuous product entry, which will cause the oil temperature to drop continuously
3. Uniform oil temperature
4. high production efficiency
TECHNICAL PARAMETER:

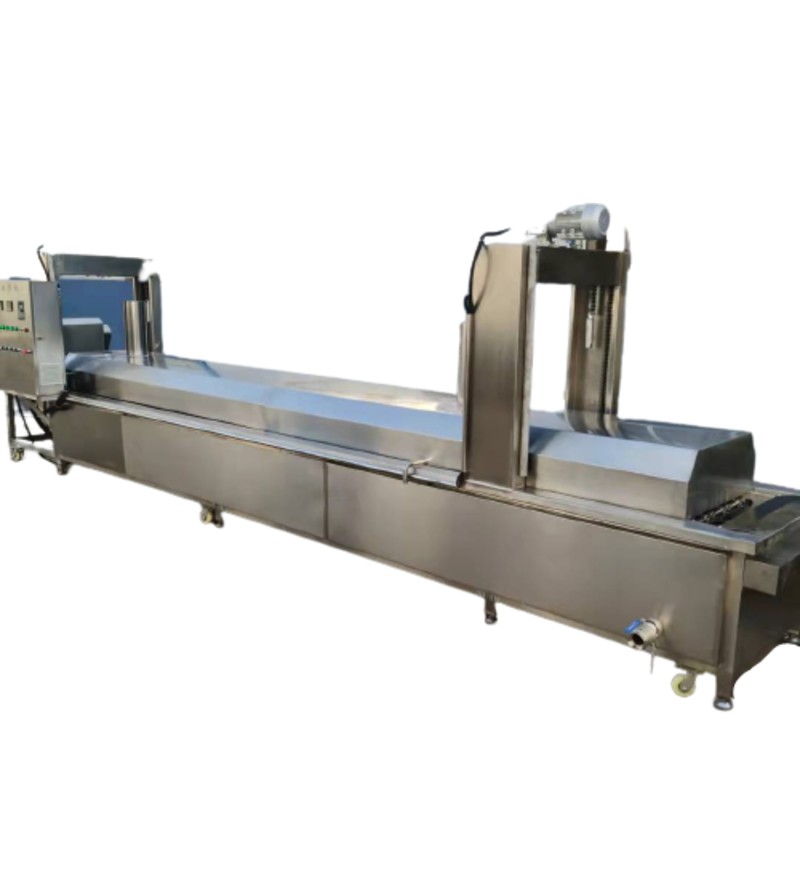

| Model | IA-3500/PTDZ |
| Brand | IACHIEVE |
| External dimension (LxWxH) | 3500 x 900 x 2000mm |
| Fryer structure | Pure oil type |
| Heating method | Electric heating tube |
| Power | 75kw-90kw |
| Fried products | Popcorn chicken |
| Frying capacity | 100-200kg/h (Popcorn chicken) |
| Frying time | Can be set, and the conveyor speed of the mesh belt is adjustable by frequency conversion |
| Frying temperature | 0-300℃ (can be set according to needs) |
| Heating tube | SUS304 Stainless steel material |
| Mesh belt | Double layer spiral mesh belt, made of stainless steel |
| Remarks | – The transmission drive motor adopts a 0.75kw RV Reducer, and the motor power of the overlying conveyor mesh belt is 0.75kw – Smoke hood and mesh belt support: can be independently lifted out of the pot for cleaning. The hood has a smoke outlet. Equipped with two independent 0.55kw reducers, it is convenient to lift the mesh belt bracket and the smoke hood out of the pot for easy cleaning – The effective conveying network has a bandwidth of 600mm, and a foot and universal wheel system are set under the equipment, which is very convenient for fixed equipment and mobile equipment- Electrical appliances: Chint electrical appliances are used – The pot body is made of SUS304 stainless steel 3mm, with a 50mm thick aluminum silicate insulation layer for heat preservation! The protective and decorative layer of the outer plate is: 1.0mm thick brushed stainless-steel plate, which is very beautiful. The thickness of the lifting bracket is 3mm. – The equipment is a double-layer conveyor mesh belt, and the mesh belt is a spiral mesh belt, The upper layer is a press-coated mesh belt, and the lower layer is a conveying mesh belt. The running speed can be adjusted by frequency conversion to bring the product out in time to ensure the product’s frying time. The electric heating tube is an M-type heating tube, which is filled with oil to ensure the temperature rise rate ensures a good product color and taste! – When the pot body is lifted out of the pot, a safety interlocking device is set below it to prevent accidents and the mesh belt bracket will drop down and cause injury. – With independent power distribution box control cabinet, the equipment is equipped with emergency stop button, which is convenient to deal with unexpected situations in time! – The oil temperature in the fryer is automatically controlled and the temperature is automatically maintained. Electric heating tubes are grouped and controlled automatically, which saves energy – The control cabinet is free-standing, highly user-friendly and easy to operate. The wiring has a wire number and a wire slot for easy maintenance. The wiring has a trunking, which is generous and high-grade – The equipment is equipped with a circulating pump to make the oil temperature consistent before and after to ensure the frying effect |
