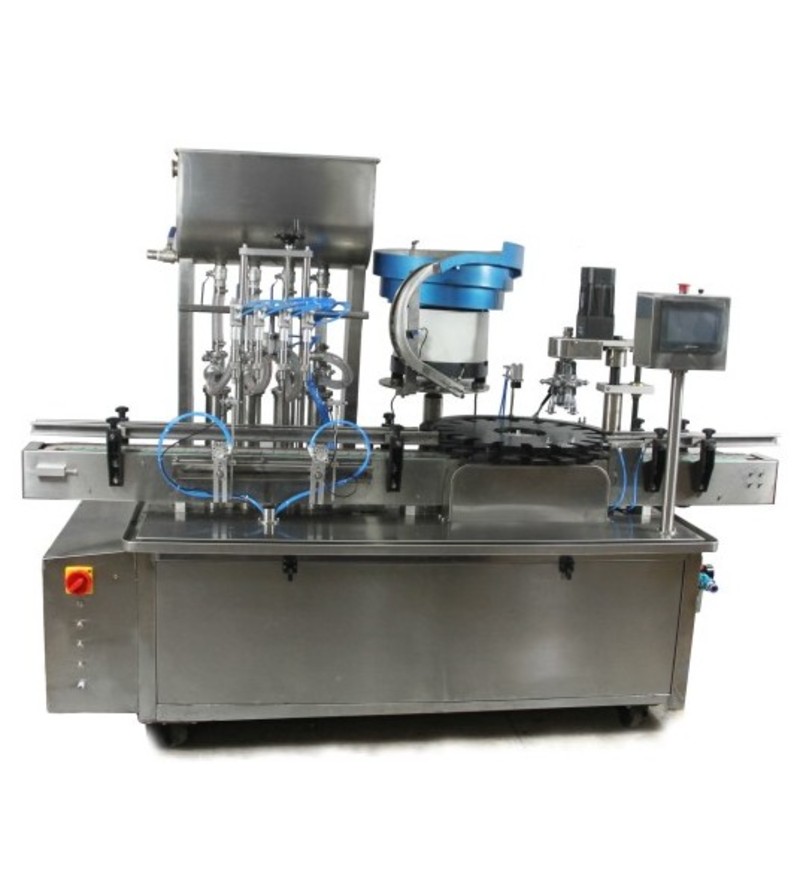

AUTOMATIC FILLING AND CAPPING MACHINE (ALL IN ONE MACHINE) – 2 HEAD FILLING

SKU IA-1000A-YTSP Category Tag

Machine Process

  1. Automatic piston pump filling (2 Heads)
  2. Automatic drop capping (1 head)
  3. Automatic turn capping (1 head)

Features

  1. This machine adopts constant torque screw caps, equipped with automatic sliding device, to prevent the cap damage.
  2. Piston pump filling, measuring precision, convenient manipulation.
  3. Filling system has function of suck back, avoid liquid leak through.
  4. Color touch screen display, PLC control system, very stable performance.
  5. Machine body is made by 304 stainless steels, easy to dismantle and clean, full compliance with GMP requirements.

Technical Parameter

Model IA-100A-YTSP
Brand IACHIEVE
Voltage 220v 50/60Hz
Power 1.5kw
Filling heads 2 or 4
Capping heads 1
Filling volume range 10-100ml
Capacity 800-1000 bottles/hour
Filling accurancy 1-2ml
Machine size (LxWxH) 2500 x 1000 x 1900mm
Weight 500kg

Product Application
