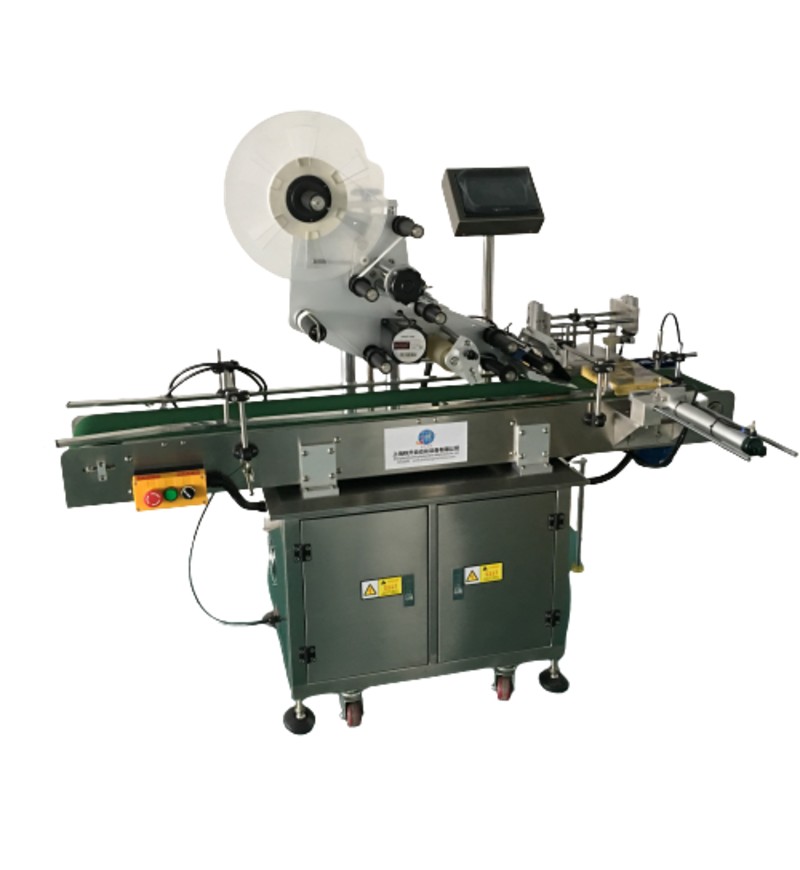

AUTOMATIC TOP & BOTTOM L-TYPE LABELLING MACHINE

Introduction

*Usage: Automatically attach self-adhesive labels and self-adhesive films on the plane, L-face and top surface of the product;

*Function: Improve the labelling efficiency of product labelling and film, accurate positioning, good quality and high stability; avoid manual labelling, low film efficiency, skew and wrinkles, irregular position and other issues Effectively reduce product costs, improve product logo aesthetics, and enhance product competitiveness.

*Application industry: widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastics and other industries;

* Miniature design of mechanical structure, taking up less space, equipment moving and easy to place in the assembly line;

*Good labelling stability, flat labelling, no wrinkle, can meet the requirements of most products on the plane and large arc surface;

*Ingenious design of structural adjustment and label winding of mechanical adjustment part, fine adjustment of the degree of freedom of labelling position (fixable after adjustment), making conversion and label winding between different products simple and time-saving;

* With automatic detection function without object and labelling, the function of breaking the alarm and stopping the machine;

* Miniature design of mechanical structure, taking up less space, equipment moving and easy to place in the assembly line;

*Good labelling stability, flat labelling, no wrinkle, can meet the requirements of most products on the plane and large arc surface;

*Ingenious design of mechanical adjustment part structure and label winding, fine adjustment of labelling position (fixed after adjustment), making conversion and label winding between different products simple and time-saving;

*The main material of the equipment is stainless steel and high-grade aluminium alloy; the overall structure is firm and beautiful;

* Adopt standard PLC + touch screen + stepper motor + standard sensor electronic control system control, high safety factor, human-computer interaction interface, easy to use, easy to maintain;

*Optional function (additional charge): 1 hot coding / coding function 2 automatic feeding function (in combination with product considerations) 3 automatic receiving function (in combination with product considerations) 4 increase the labelling device 5 other functions (press Customer requirements to order)

Operation Instructions

* Core working principle: The sensor detects the product passing, returns the signal to the labelling control system, and controls the system to send the label at the appropriate position and attach it to the position to be labelled. The product flows through the labelling device and the label are rolled. Cover or brush flat, the attachment action of a label is completed;

*Operation process: release product -> product delivery (automatic realization of equipment) -> labelling (automatic realization of equipment) -> collection of labelled products

Technical Parameter

Model	IA-6001QH/TBJ
Brand	IACHIEVE
Production capacity	10-60pcs/h (Related to product size)
Labelling accuracy	±1.0mm (Exclude product and label error)
Product size applicable	15mm<width<220mm, length>15mm
Label size applicable	20mm<width<110mm, length>10mm
Power supply	220v 50Hz 1.5kw
Machine size	1600 x 700 x 1300mm
Weight	250kg

Product Application

widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastics, printing and other industries; Powerful and versatile (square bottles, flat bottles, oval bottles, shaped bottles, round bottles can be used as usual).
