Description
APPLICATION:
Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill, liquid),also can be used to fill vitamin, foodstuff and animal drug, etc.
- Touching-Screen, PLC program control panel with LCD.
- Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
- Easy speed selection and closed capsule length adjustment.
- Electrical Appliance control system approved to CE, and international standard.
- Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
- Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
- Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.
TECHNICAL PARAMETERS:

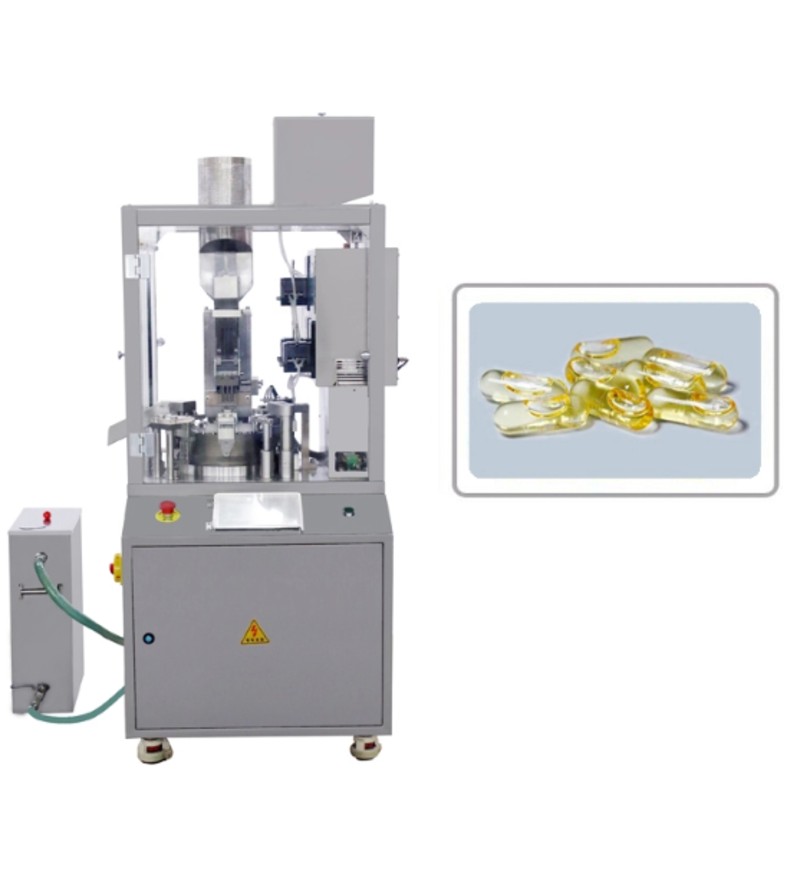

| Items | Capsule Filling Machine – Liquid Type |
| Weight | 900kg |
| Overall size | 1020×860×1970mm |
| Motor power | 5.75kw |
| Power | AC 220V/380V; 50Hz/60Hz Three-phase four-wire AC 380V;50Hz |
| Max Capacity | 260pcs/minute |
| Capsule size | 00#~5# Supro/safefy capsule size:A~E |
| Load difference | ≥99.5% |
| Noise | ≤75dBA |
| Filling amount difference | Liquid: above 300mg ≤ ±3% |
| Compressed air | 0.06m3/min 0.3Mpa |
| Water source requirement | The water recycle vacuum pump is equipped with a water tank for recycle using, and can also be connected to an external water source. |
| Vacuum degree | -0.02~-0.06 MPa |
| Water flow | 250L/h |
| Inlet pipe inner diameter | 20mm |
| Drain pipe inner diameter | 27mm |
| Working temperature | 21℃±3℃ |
| Working plant height requirement | Manual materials load ≥2.6m, Automatic materials vacuum convey≥2.8m |
| Working environment relative humidity | 40~55% |
| Exhaust volume | 300m3/h |
| Control System | Variable frequency stepless speed regulation, PLC control |
