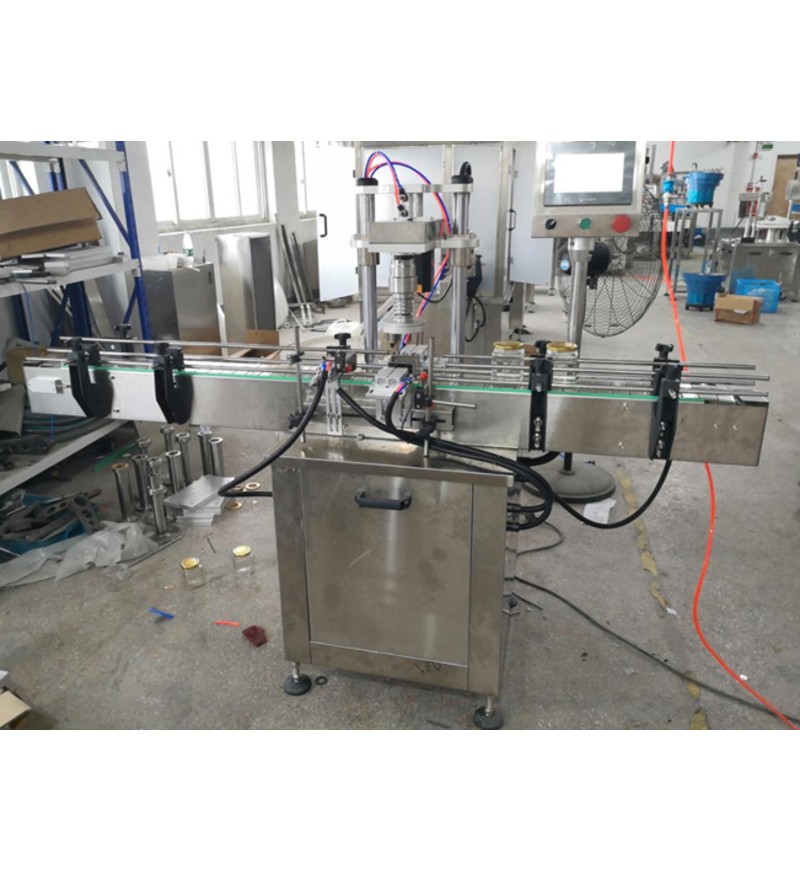

Description
Product Description:
- The capping machine is based on the international advanced models to improve the design, quick capping speed, high pass rate and convenient operation.
- Applicable to different bottle-shaped screw caps in the food, pharmaceutical, cosmetic, pesticide, cosmetics and other industries.
- The speed motors are used for capping, bottle clamping, conveying and capping respectively. The machine is highly automated and stable.
- Easy to use, no spare parts required when replacing bottles or caps, just make adjustments.
Automatic capping machine Highlight:
- Stainless steel + lightweight aluminum production
- The machine has good compatibility, can apply a variety of common caps. And the operation is simple.
- Excellent flexibility, can be adjusted according to the bottle height and cap size, elastic according to customer requirements
- The cover cover wheel wear-resistant silicone, does not hurt the cap.
- On the duckbill cover (pump head, nozzle,) more advantages, uniform mouth direction.
- Can be used in the filling production line.
Technical Parameters:
| Model | IA-01/XGJ-M
|
| Voltage | 220V 50/60Hz
|
| Air Pressure | 0.5-0.7Mpa
|
| SS Material | SUS304
|
| Small Cylinder | Airtac
|
| PLC
|
Delta |
| Diameter of Capping | 30-100 mm
|
| Capping Heads | 1
|
| Capping Speed | 20-22 Bottles/Min
|
| Machine Size (L*W* H)
|
2000*1050*1500 mm |
| Weight | 350Kg
|

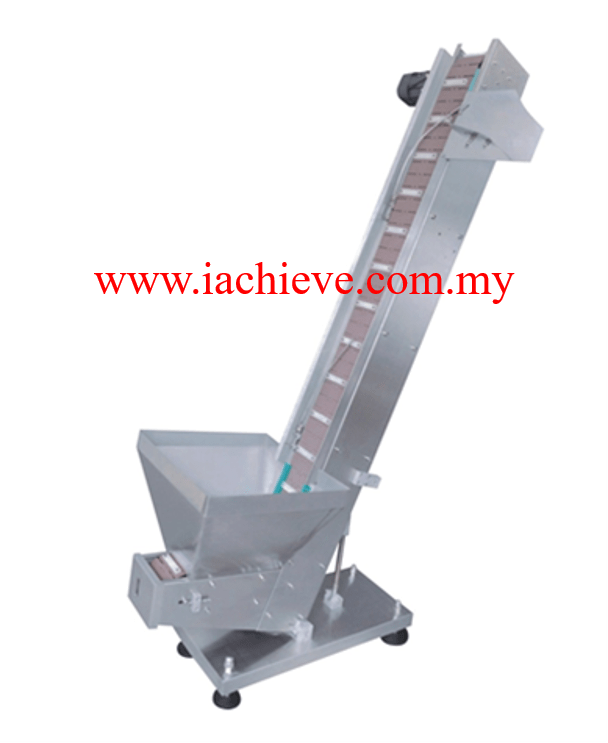

* With Automatic Cap Loader
Technical Parameters:
- Supply voltage (V/Hz): AC 220/50
- Power (W): 500
- Air pressure: 0.4 – 0.6 mpa
- Speed: 25-40 pcs/min
- Bottle height: 80 – 320mm , Bottle weight: 40 – 120 mm
- Cover range: 20mm – 70 mm
