Description
PRODUCTS DESCRIPTION:
The CE Series machine can automatically stop when no bottle to lock, blocking when out of exit, wrong orientation, damage of the bottle. The wresting force can be adjusted when locking different caps. It’s easy to replace the locking heads and the star tray according to different container or bottle caps.

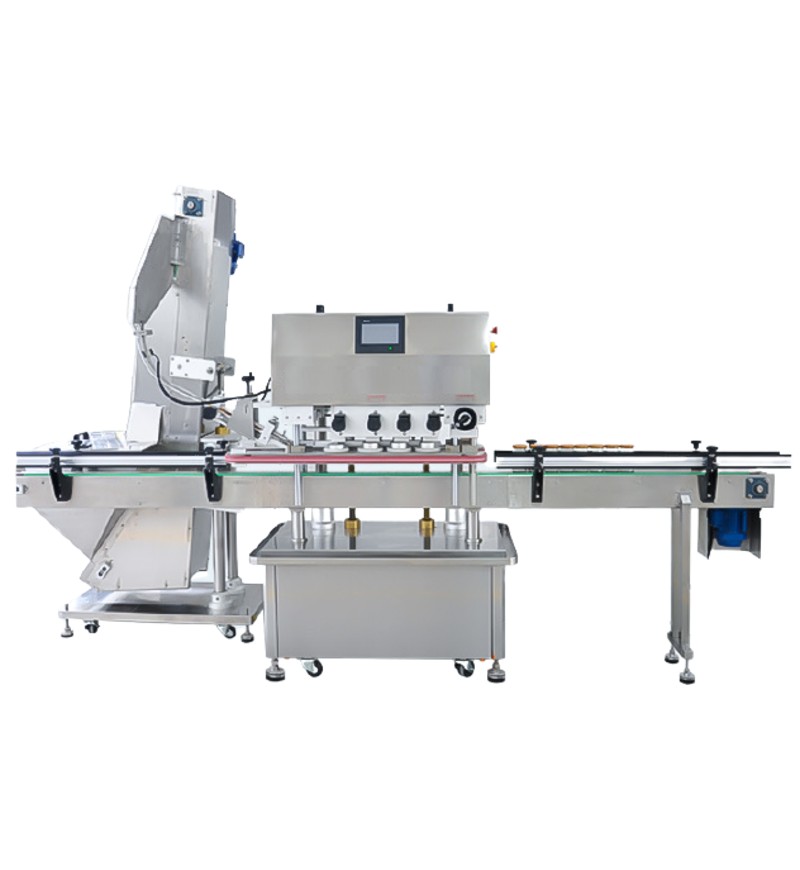

Automatic Capping machine with feeder is used for glass bottle, PET bottle, plastic theft-proofing cap, tinplate caps screwing. It can be linked with production line and indecently working. it can automatically unscrambler the cap by feeder, then send to the capper to tighten.
- Automatically unscrambler the cap by feeder bowl
- PLC control, screwing speed can be adjustable.
3. Locating device, easy operating, high efficiency, stable performance.
4. Can tight different dia. bottle caps.
TECHNICAL PARAMETER:
| Model | IA-60/XGJ |
| Kinds of revolving caps | Screw revolving cap |
| Capacity | 40-60B/min |
| Voltage | 415v |
| Power | 1.2kw |
| Air consumes | 30L/min |
| Chain plate | 150mm |
| Weight | 700kg |
| Height | 750-800 (Adjustable) |
| Dimension | 3000 x 1300 x 1500mm |
