Description
DESCRIPTION:

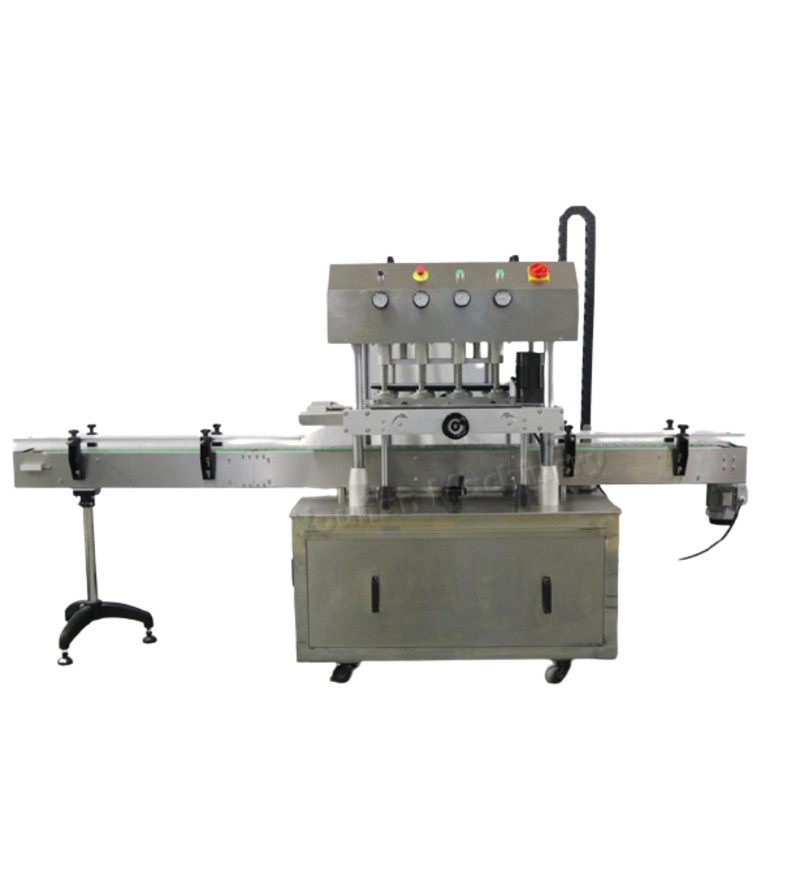

Automatic Capping machine with feeder is used for glass bottle, PET bottle, plastic theft-proofing cap, tinplate caps screwing. It can be linked with production line and independently working. it can automatically unscrambler the cap by feeder, then send to the capper to tighten.
- Automatically unscrambler the cap by feeder bowl
- PLC control, screwing speed can be adjustable.
- Locating device, easy operating, high efficiency, stable performance.
- can tight differently bottle caps.
- Cap arranging, drop automatic, easy operation
- Bottles entry in line, continuous capping, high efficiency and quick (capping speed is two or three times as fast as intermittent capping)
- Frictional capping and rotary bottle conveying, no shake and noise.
- Stop itself when meeting trouble and no bottles, it is more safety.
- Applicable to bottles of different specifications with screw.
TECHNICAL PARAMETER:
| Brand | IACHIEVE |
| Model | IA-680/BX-A |
| Production | 30-50 bottles/min |
| Bottle specifications | Ø 30-120mm |
| Caps diameter | Ø 20-50mm or 50-85mm |
| Motor total power | 600W |
| Voltage | 220V 50/60Hz |
| Dimensions | 2170*1550*1500mm
1350*730*1440 |
| Weight | 530Kg |
