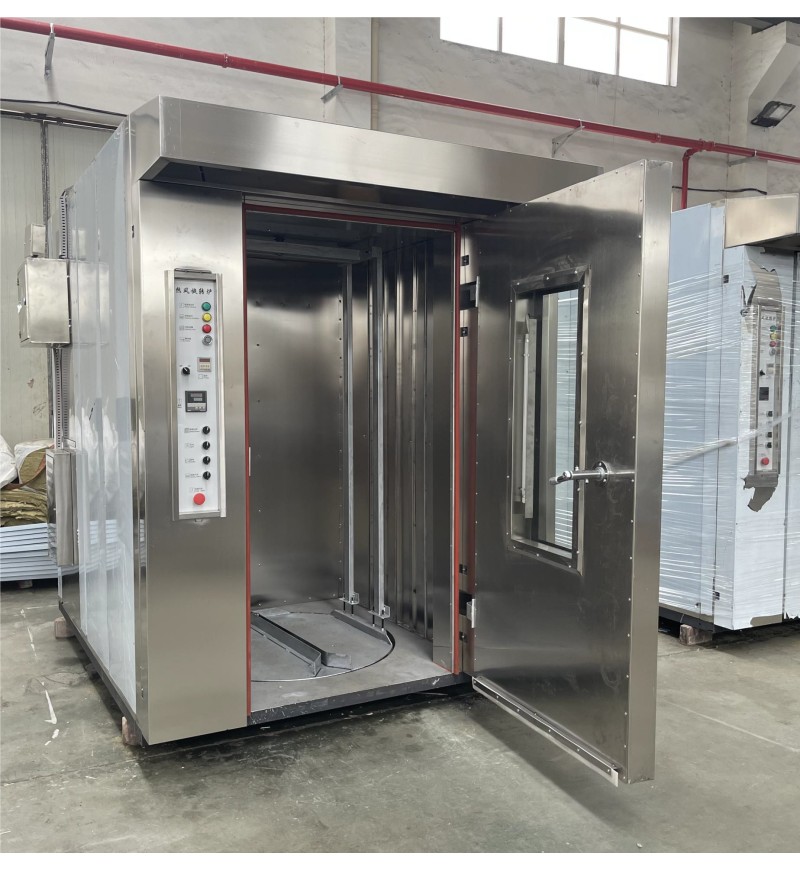

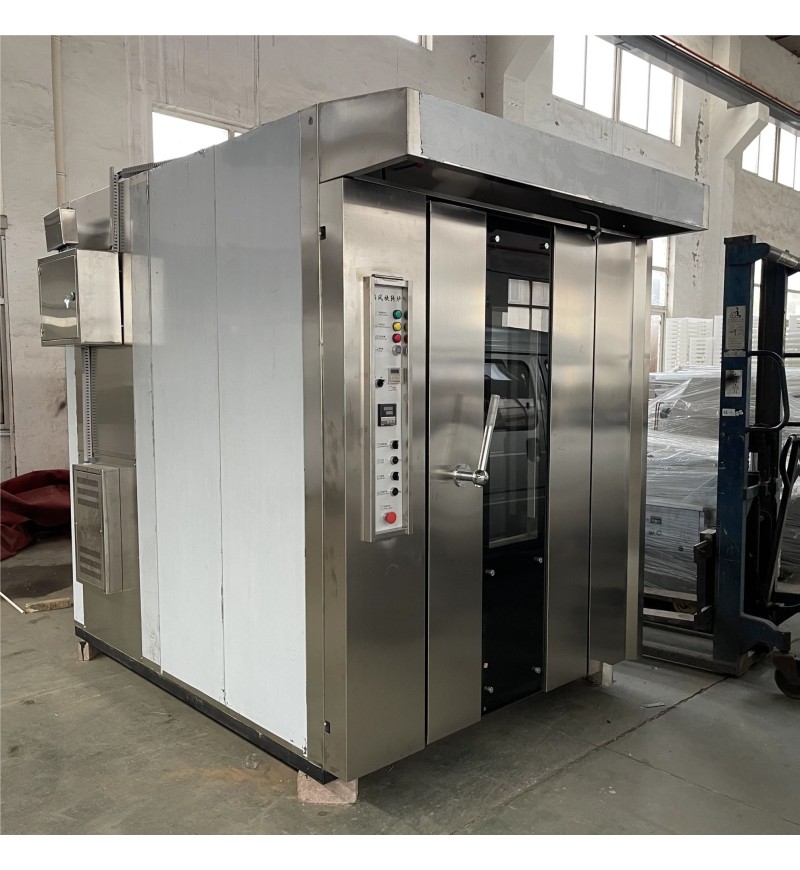

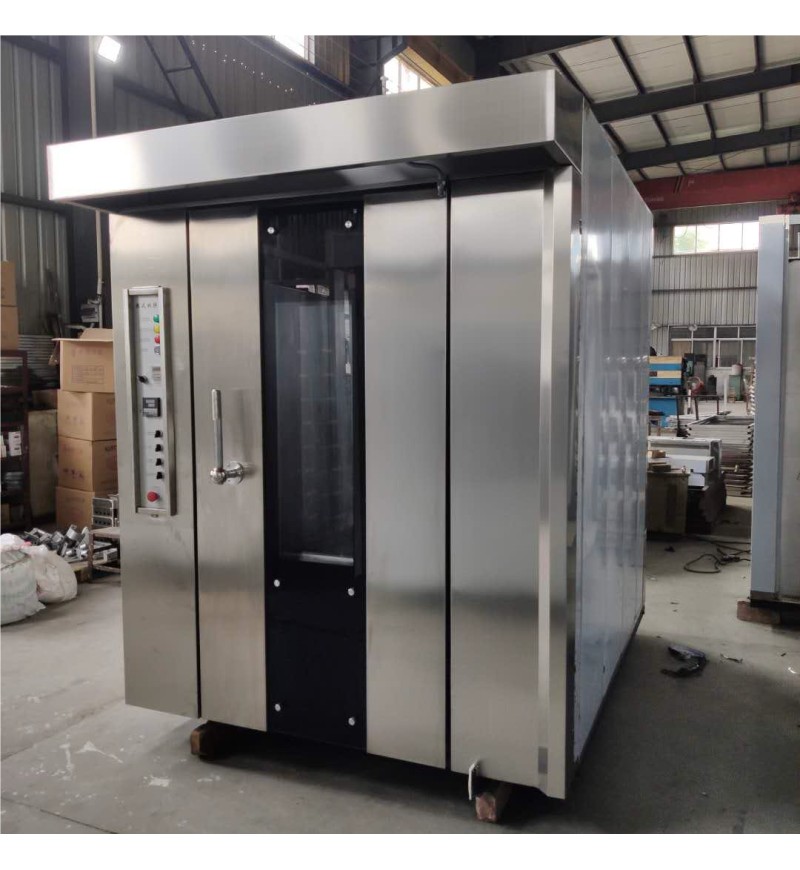

SINGLE TROLLEY ROTARY RACK OVEN (32 TRAY)

SKU IA-32/HQ Category

Product Description

Hot air rotary oven for cookies, biscuit, bread, cakes, moon cake, beef jerky and other foods of the best baking equipment. The company’s technical staff to learn the advantages of similar products at home and abroad, well-designed and manufactured a new generation of energy-saving products, is currently the most advanced food baking equipment. Converters are stainless steel liner and the shell, clean; super insulation tight sealing and good insulation properties, the maximum degree of reduction of heat loss; hot air convection cycle and slow rotation of the car combine to make all parts of the food during baking uniform heating; furnace equipped with a lighting system that can be clearly observed by the baking process food glass door. The device heating methods are: diesel, gas, electricity, three kinds of heating. Customers can choose according to the actual situation. It can also be customized according to special requirements of customers.

Technical Parameters

Model IA-32/HQ
Output 60-100kg/h (depending on the baked product)
Baking pan size 400*600mm
32 tray size 830*630*1660 mm
Cart 16 layers, 2 trays each time
Baking time 12-30min
Equipment size 2280*1900*2550 mm
Weight 1500kg
Heating method electric, diesel, gas
Electric power 48.75kw
Gas power 3.75kw
Gas consumption 4-5m³/h
Fuel quantity 3.8-4.5 liters/h
Voltage 415v , 50hz , 3 Phase
Burner Paterson/Olympia
Material The inner tank and outer shell of the equipment are made of stainless steel
Random configuration Equipment with 2 stainless steel carts

Product Application
