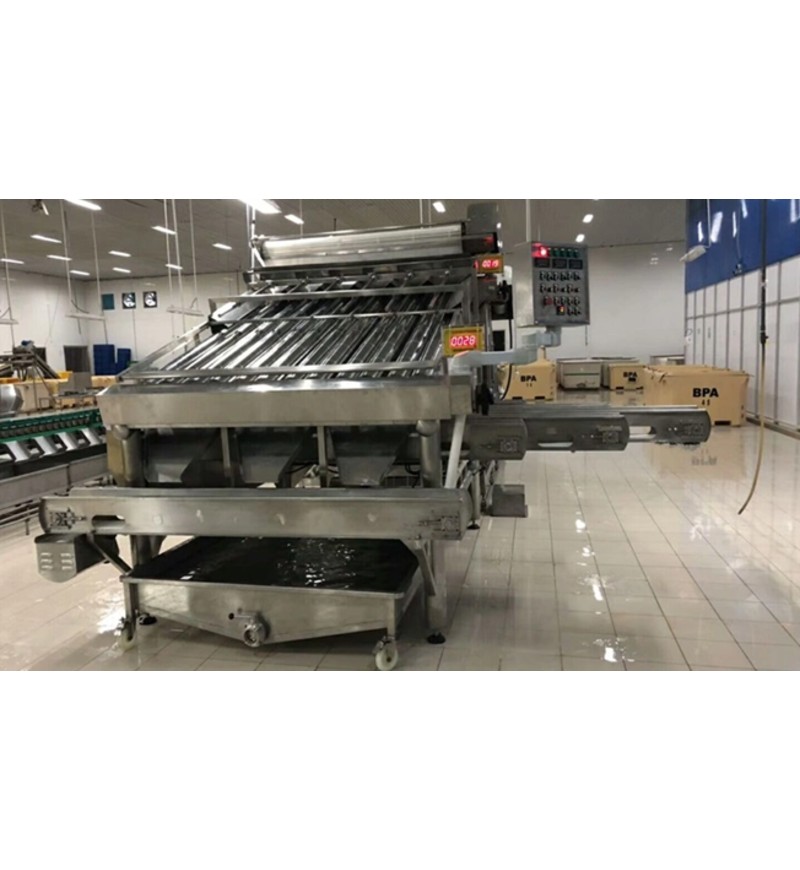

Grade and wash shrimp efficiently with this industrial shrimp grading and washing line, featuring multi-stage lifting, a grading drum, and conveyor discharge. Available with 10, 12, or 18 grading rollers to accommodate different sorting requirements, with a processing capacity of 2.5 tons per hour.

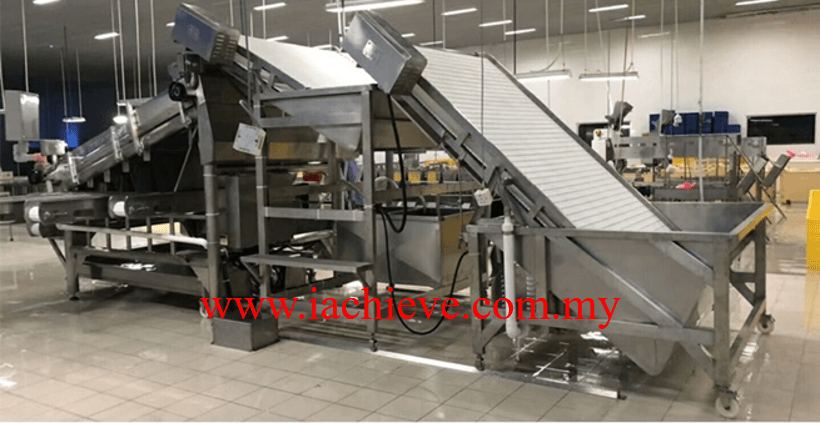

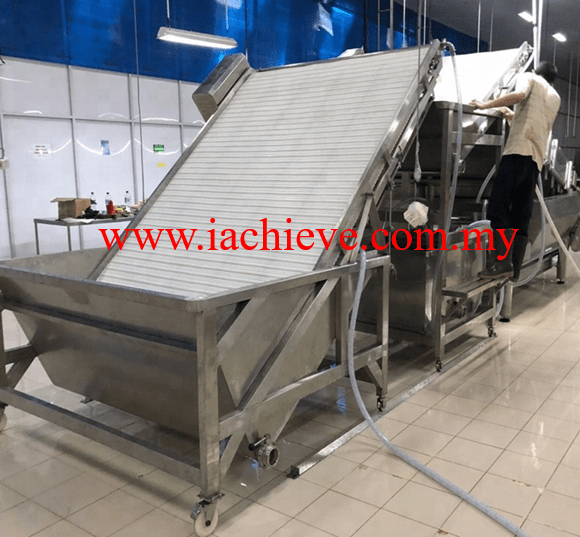

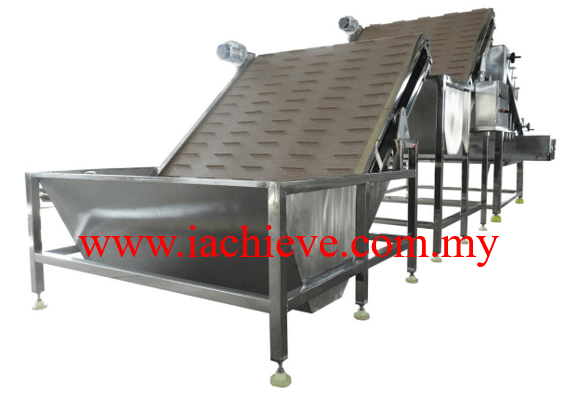

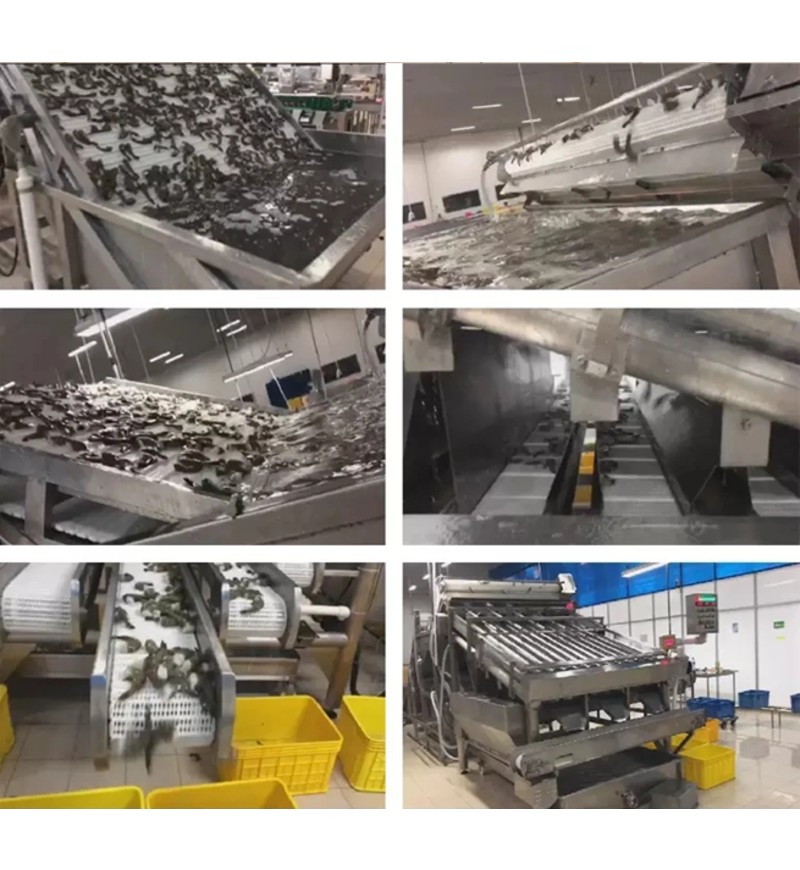

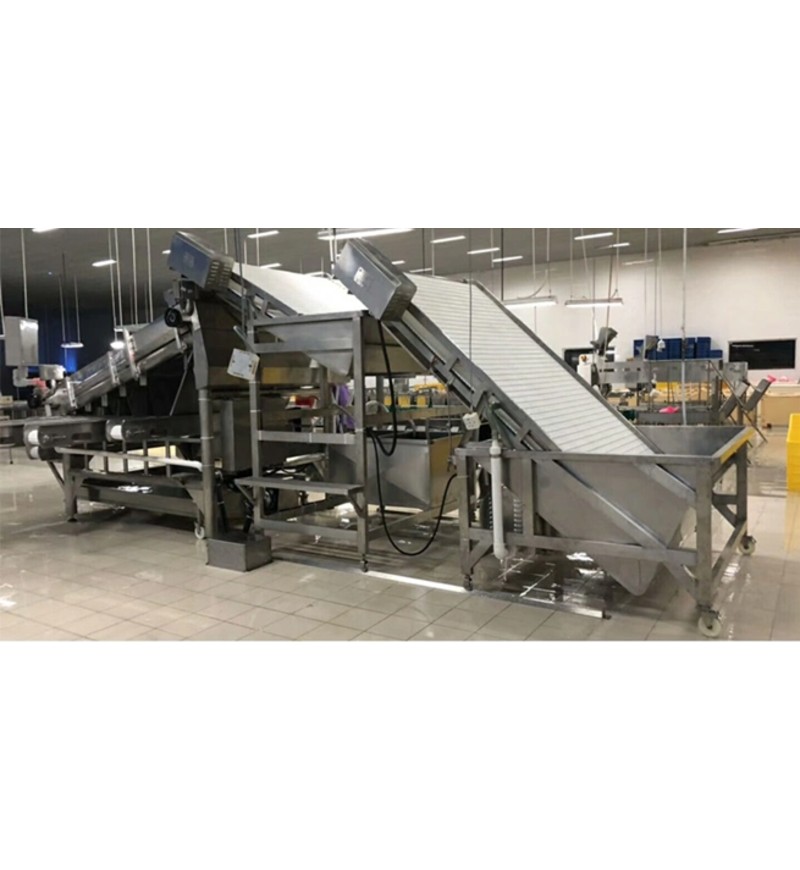

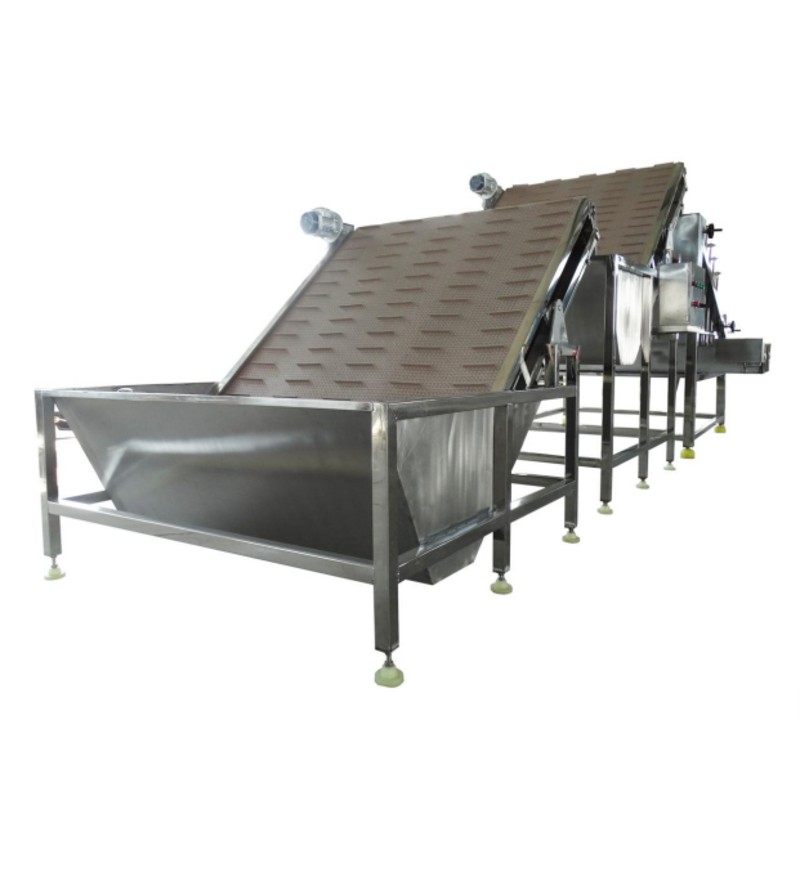

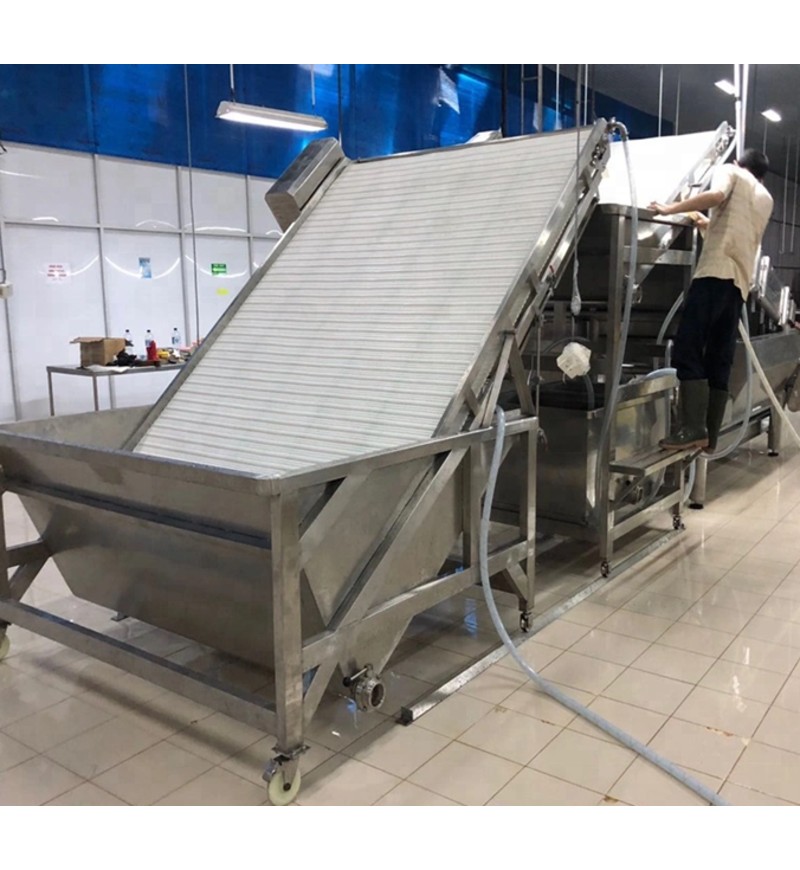

The shrimp automatic classifier mainly lifts the shrimp to the second-level lifting belt through the first-level lifting.

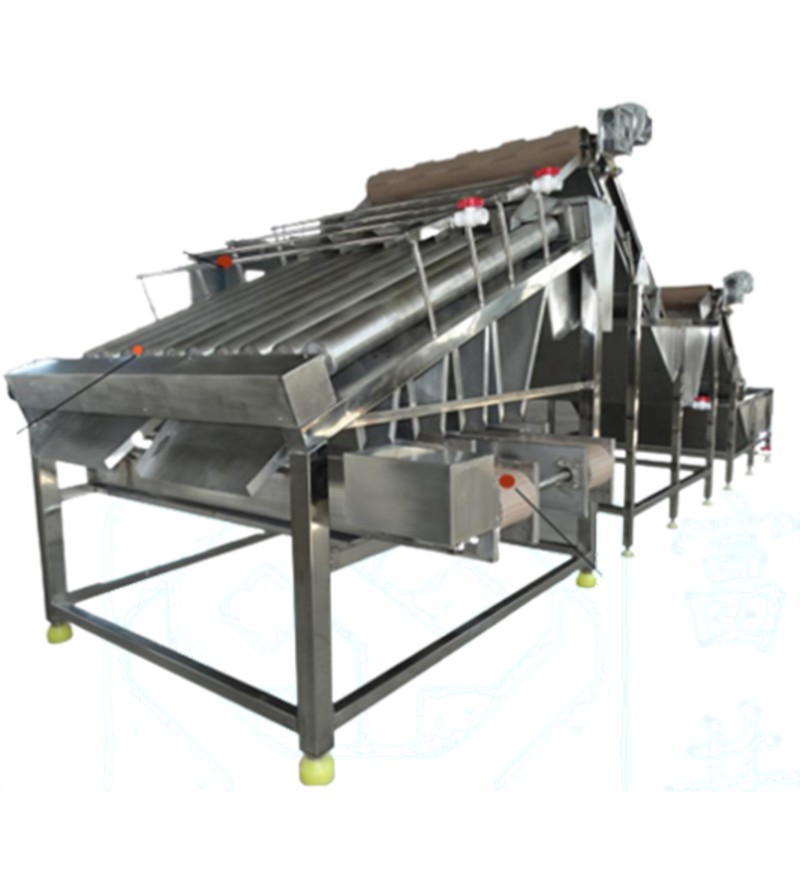

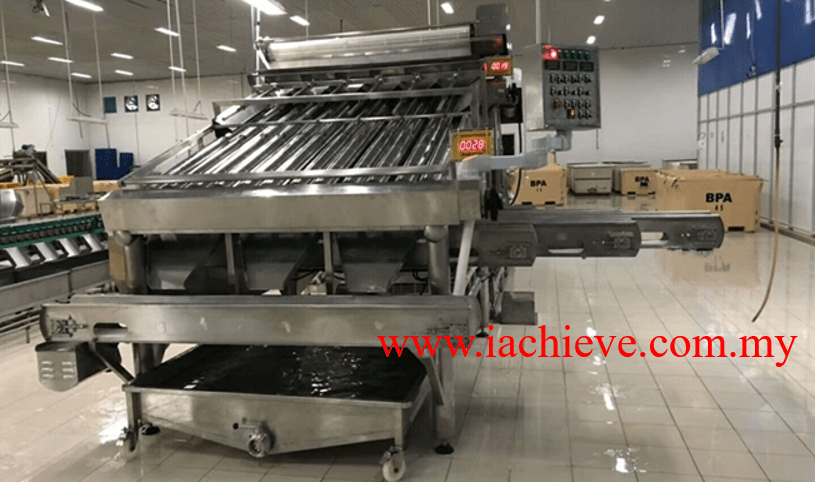

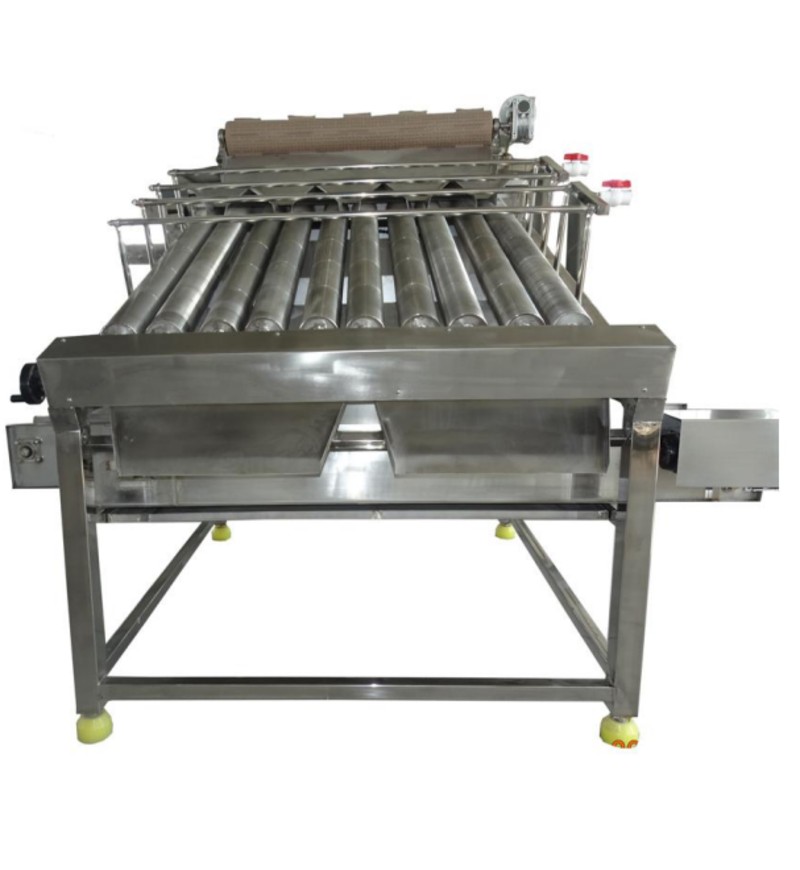

The prawns are evenly lifted to the grading drum for classification, and the products of different sizes after grading

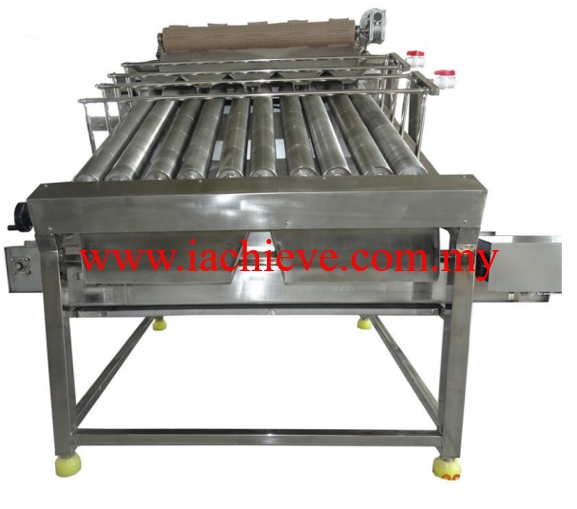

It is transported out through the conveyor belt, and the required grading effect has been achieved. Grading rollers include 10, 12,18 rollers vary, in short, the more rollers, the longer the length, the greater the output
| Model | IA-2.5W/FLJ |
| Brand | IACHIEVE |
| Dimension (LxWxH) | 6000 x 4200 x 2300 |
| Grading roller | 12 Roller, Size 125 x 130mm, SUS304 |
| Conveyor | W: 2665mm, high-strength PVC plastic steel belt, baffle height 10mm, two-stage lifting |
| Capacity | 2.5T/H |
| Electric Controller | Mitsubish Inverter (1), K light sensor (2), Mini Screen Monitor (2) |
| Voltage | 415v 50Hz |
| Power | 1.5KW × 2 sets, 2.0KW × 1 set, 0.75KW × 2 sets, stainless steel water purification pump 1.1KW × 1 set |
| Material | SUS304 |
| Conveyor part | Stainless steel square shaft, SS Round Shaft, steel gear , SFU304#207 bearing, SPU304#207 bearing ,SF204 bearing, SP204 bearing, SF205 bearing |
| Grades | 4-6 Grades |
| Spraying part | Main pipe 50mm, 40pcs of multi-direction spray |
