Working Principle
Using precise and dynamic data screening principle for classification, products of different weights are sorted into
+6018-971 3633
Puchong, Selangor
+6018-971 3633
Puchong, Selangor

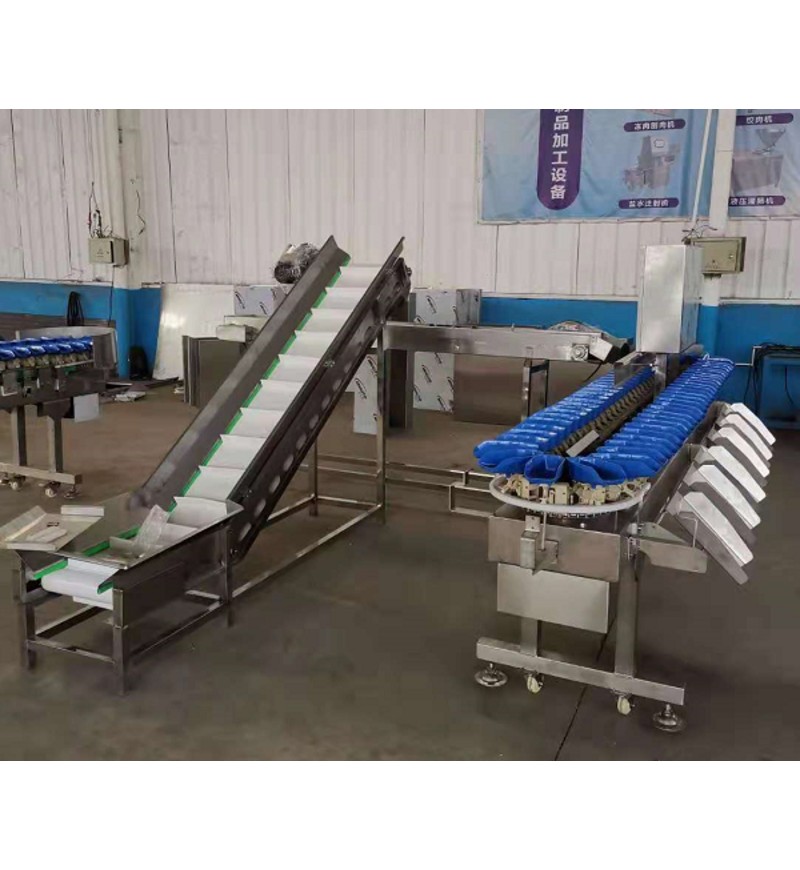

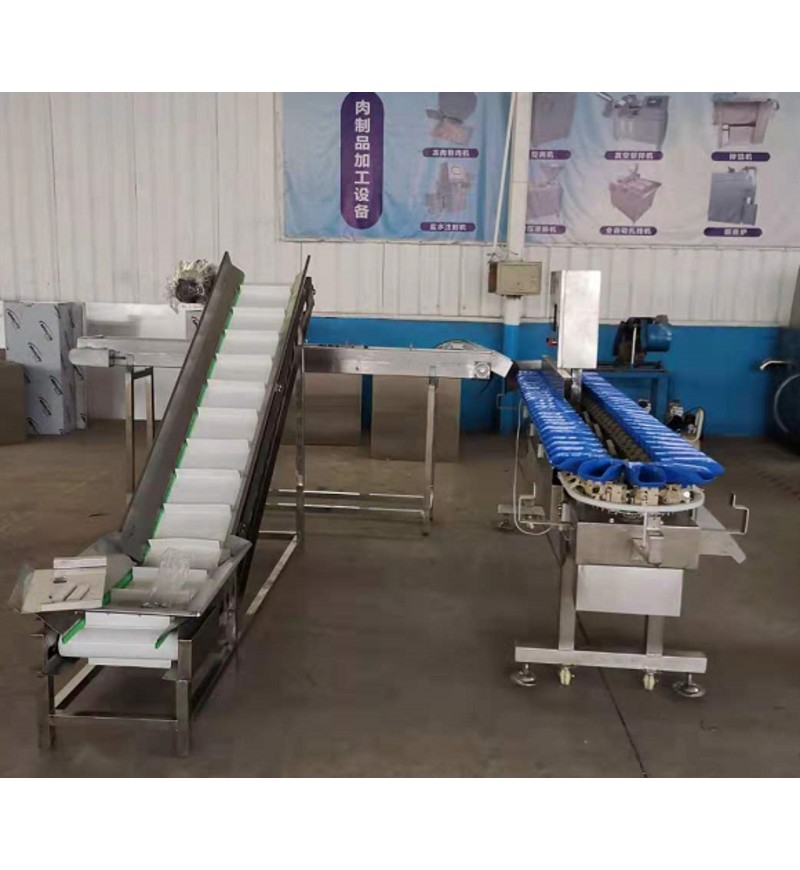

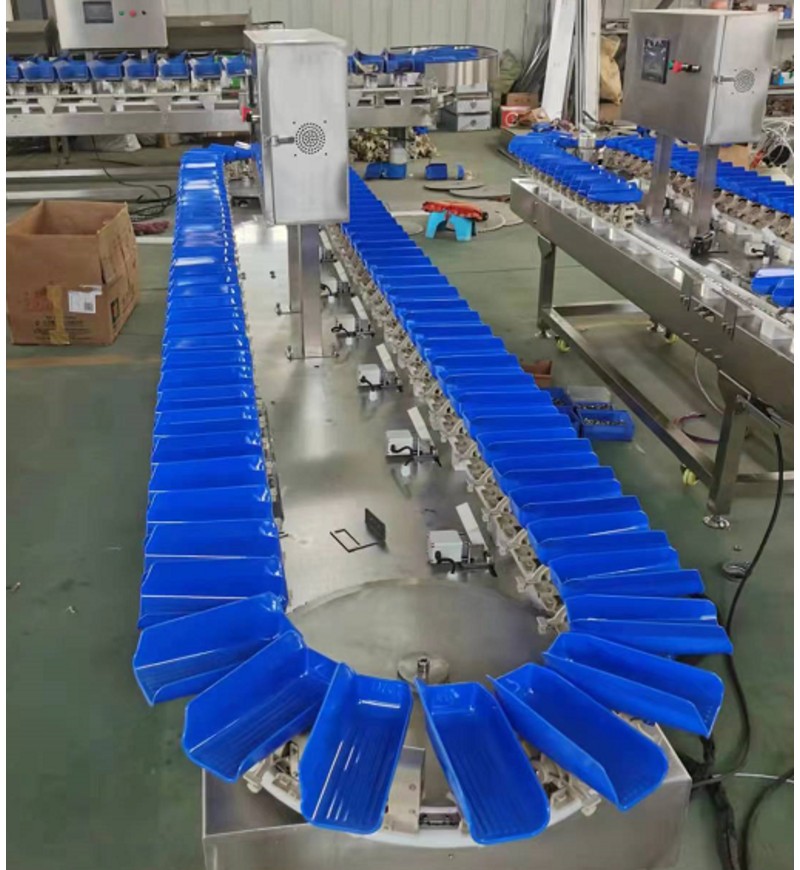

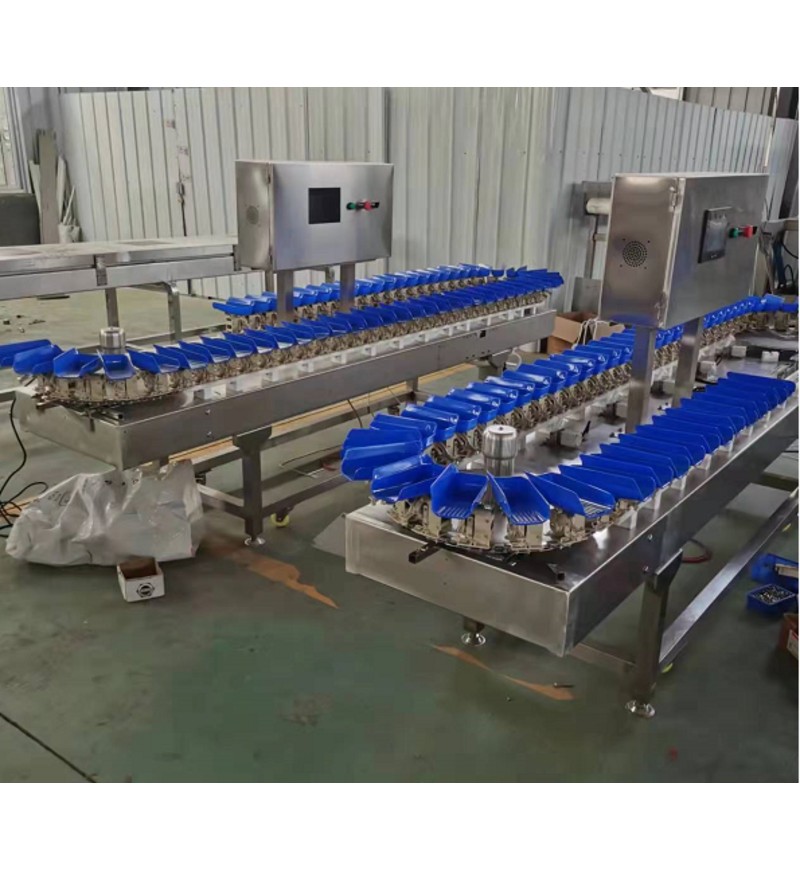

Tilting tray weight sorters help customers automatically sort products by weight, suitable for products including poultry, fish and meat or frozen food. As an independent sorting equipment, it can be partitioned according to the weight required by the customer, which can reduce the labor cost of the sorting process and optimize the production process.
One of the main features of the device is the modular design based on which products can be safely sorted with up to 16 weight divisions.
Using precise and dynamic data screening principle for classification, products of different weights are sorted into
| Model | IA-800L/FXJ |
| Brand | IACHIEVE |
| Sorting level | 5-12 level |
| Sorting speed | 180-280 pieces/min |
| Sorting accuracy | 0.1g |
| Measuring range | 1-100g |
| Sorting error | ±0.5-1g |
| Voltage | 220v 50Hz |
| 5 Level Grading (Long x Width) | 3200 x 800mm |
| Material | SUS 304 Food Grade |
| Weighing system | IP67 |
| Motor power | 500-800w |
| Protection class | IP65 |
| Box Size (Long x Width) | 21×9 (suitable for potato) |
The material box/rotary weight sorting machine is mainly suitable for the classification of poultry by-products, seafood and animal husbandry by-products, such as chicken legs, chicken wings, chicken nuggets, chicken feet, duck necks, duck feet, duck wings, sea cucumber abalone, fish and shrimp, Raw oysters, oysters, scallops, crabs, pork nuggets, beef nuggets, etc.; Efficiently replace manual sorting, while saving labor costs, greatly improving the standardization of products, bringing more product premium space and bargaining power.
