Description
FEATURES:

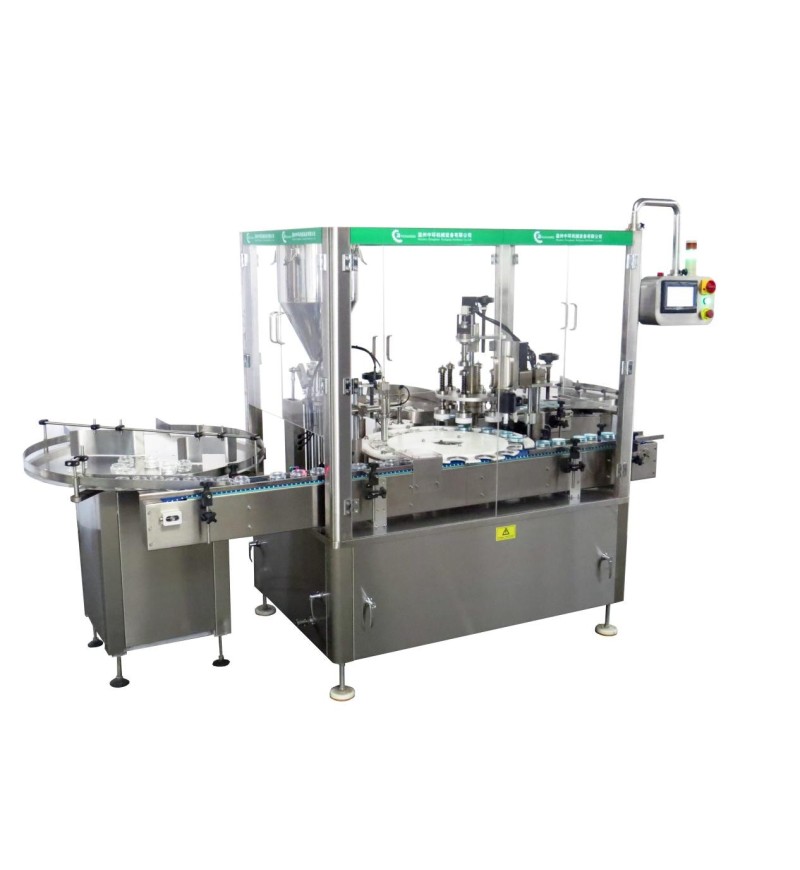

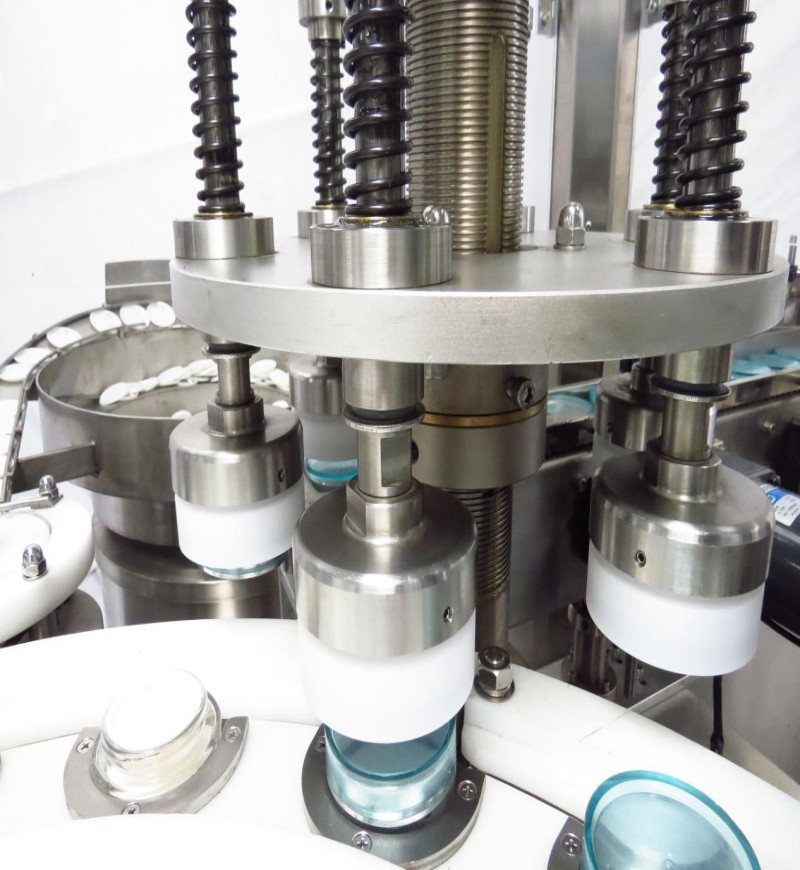

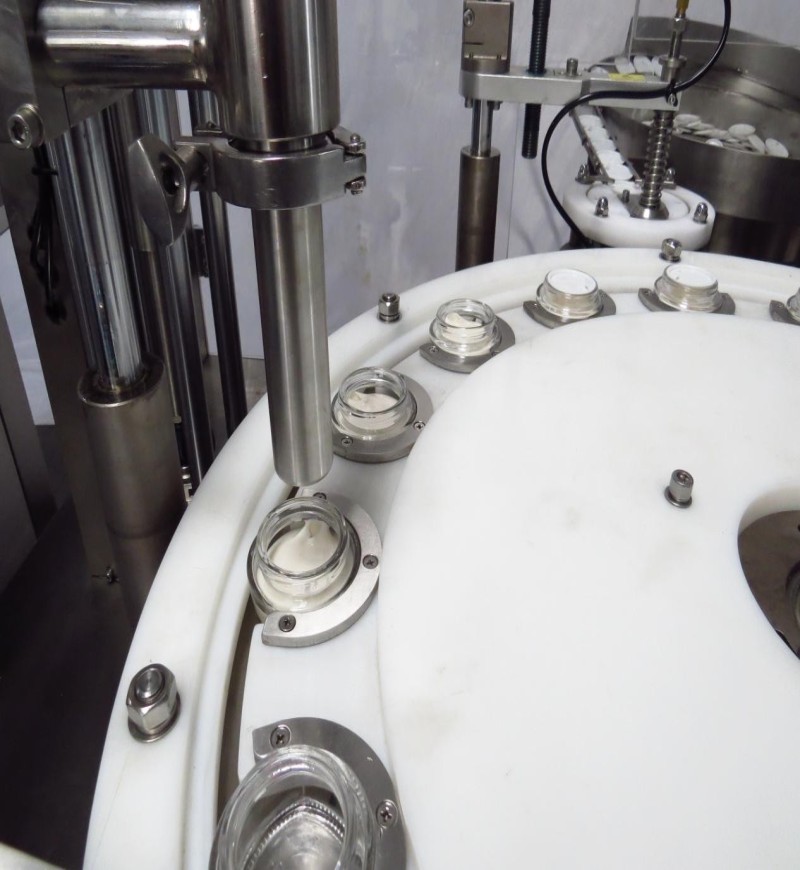

Hot filling, sealing and capping machine applies to pharmaceutics, foodstuff and chemicals industries; the machine has the function of filling with heat preservation, sealing film on bottle, covering and locking automatically. The material is high viscosity ointment. The control system of the machine adopts technology of PLC and human – machine operation interface, which with the feature of compact structure, easy operation, stable performance.

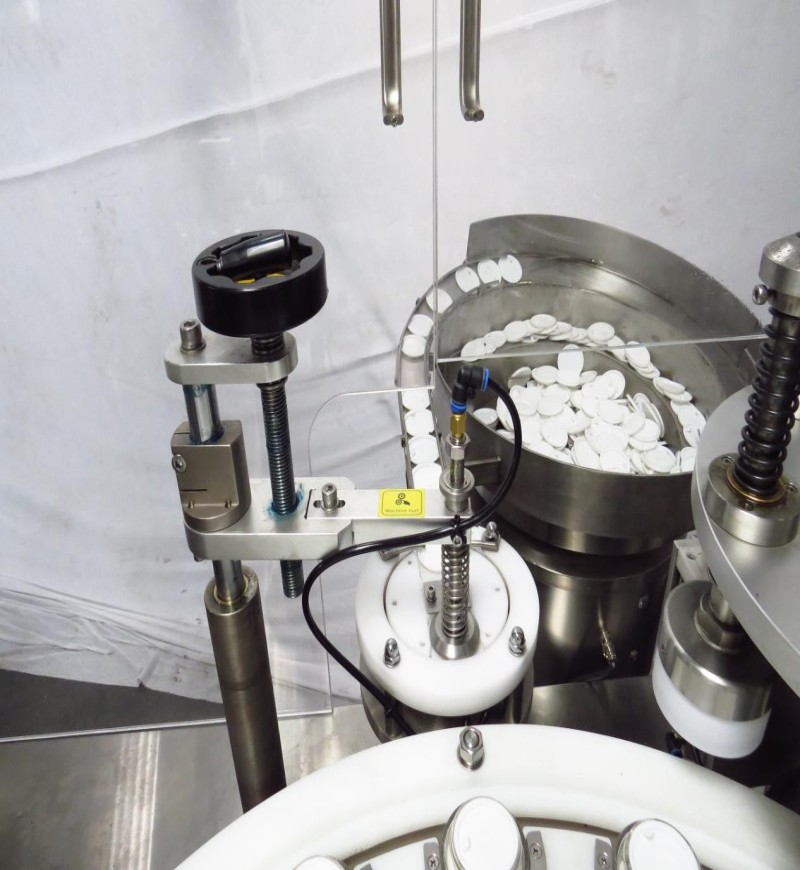

This machine has the function such as automatic screw type bottle feeding, bottle detecting (No bottle No Filling, No Bottle No Cap Feeding).
TECHNICAL PARAMETER:
| Model | IA-50/ZHG |
| Brand | IACHIEVE |
| Main motor power | 0.4kw |
| Pusher servo motor | 0.4kw |
| Production capacity | 30-40pcs/min |
| Power supply | 220v 50Hz |
| Compressed air | 0.6-0.8Mpa |
| Sealing temperature | 245° |
| Filling accuracy | ≦±1% |
| Dimension | 1755 x 1280 x 1830mm (not include conveyor and cover neatening device) |
| Machine weight | 600kg |
| Total power | 2kw |
