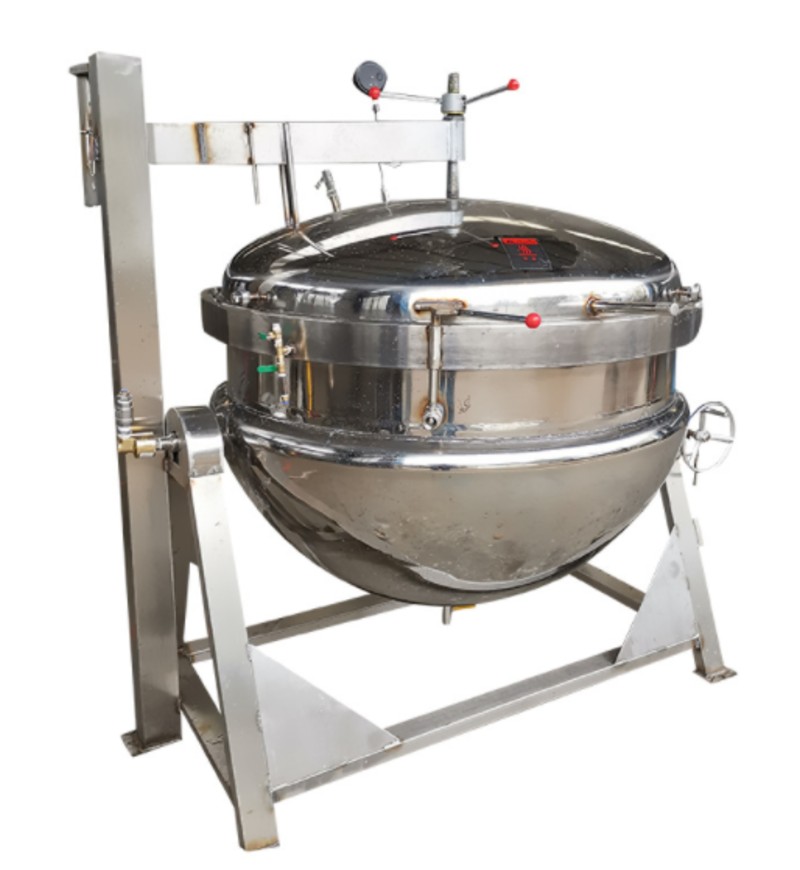

HIGH PRESSURE-COOKING POT

SKU IA-50L/YLG Category Food Processing Machine

The cooking pot uses the heat transfer oil in the electric heating interlayer as the heat source. The cooking pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short liquid boiling time, and easy control of heating temperature. The inner pot of the cooking pot is made of acid-resistant and heat-resistant stainless steel, equipped with pressure gauges and safety valves, temperature control, temperature detection, etc. Beautiful appearance, easy installation, convenient operation, safe and reliable.

Share Now:

Specifications

The number of hanging baskets: customized according to the actual size of the equipment and the requirements of the customer
The main body of the frame is made of SUS304 industrial stainless steel wire drawing square tube
The sealing adopts sealing flange, which is easy to operate, safe and reliable.

Technical Parameter

Model	50L	100L
Brand	IACHIEVE	IACHIEVE
Voltage	380v 50Hz	380v 50Hz
Power	24kw	24kw
Capacity	50L	100L
Dimension (LxWxH)	1050 x 800 x 1300mm	1150 x 800 x 1300mm
Cylinder Body	Thickness Inside 4mm Thickness Outside 3mm	Thickness Inside 6mm Thickness Outside 4mm
Pot rim height	450mm	800mm
Pot Body	Inner Diameter 600mm Outer Diameter 700mm Height 450mm *Plate Thickness : Inner 4mm Outer 3mm	Inner Diameter 700mm Outer Diameter 800mm Height 1300mm *Plate Thickness : Inner 4mm Outer 3mm
Manual ball valve	DN40 *Manual pressure relief
Thermometer	0-120℃ *Bimetallic thermometer
Safety valve	DN20 *super-rated pressure relief
Pressure gauge	0-0.3Mpa
Material	SS 304 ( Except for some parts )
