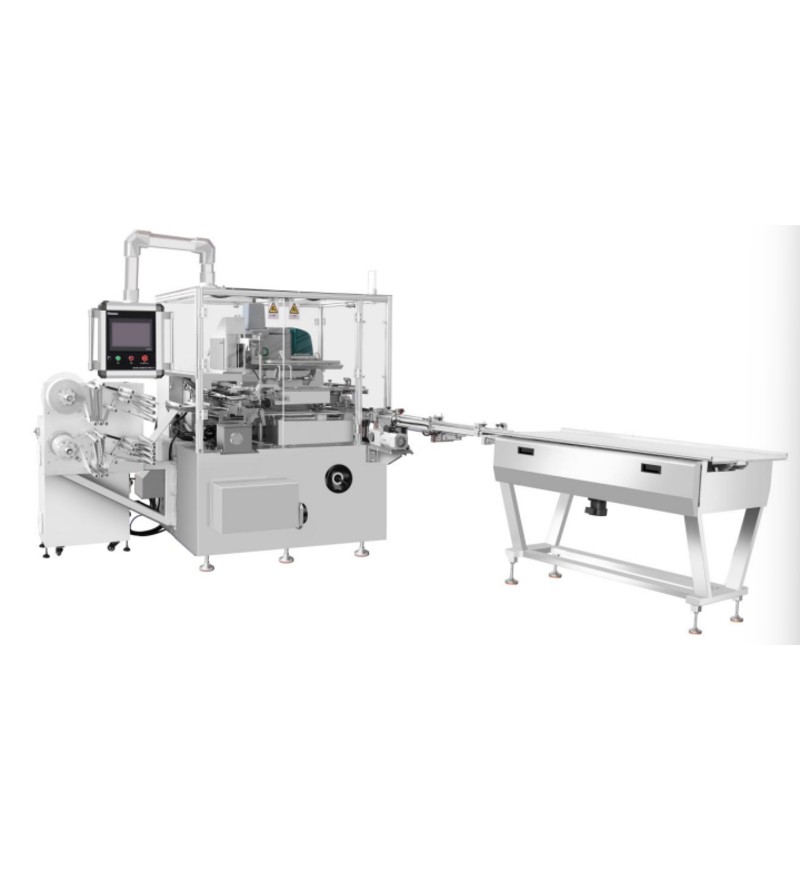

This packing machine is design for big size chocolate bar and ice cream block. With the advantage of fast packaging, good consistency, low failure and long service life.
| Model | IA-100/CFP |
| Brand | IACHIEVE |
| Packing speed | 60-100 pcs/min ( According to size ) |
| Chocolate size | L: 80-183 W: 40-82 H: 10-40mm |
| Totol power | 10.0kw |
| Power supply | 380v 50Hz |
| Air Supply | Pressure: 0.6Mpa Flow: 0.6m3/min |
| Wrapper Material | Foil, Wax, Paper, BOPP, etc ( Must be easy to fold) |
| Wrapper Width | Inner Max 225mm, Outer Max 250mm |
| Wrapper roller size | Inner Diameter 76-90mm, Outer Diameter 300mm |
| Item | Part | Brand & Origin | Remarks |
| Packing Machine | Machine Body | Stainless Steel | Strong and stability |
| Frock Clamp | Alloy steel | Strong and stability | |
| Contact Area | SUS and PU | Food Grade | |
| Wrapper Holder | Double | ||
| Driving Motor | Chinese Famous Brand | ||
| Servo Motor | Panasonic (Japan) | Paper Feeder | |
| Touch Screen | Omron (Japan) | Easy to operate | |
| Precision Pontentiometer | Omron (Japan) | Accurate and reliable | |
| Rotary Encoder | Omron (Japan) | Accurate and reliable | |
| Material Sensor | Leuze (Germany) | ||
| Color Mark Sensor | Leuze (Germany) | ||
| Paper Feeder Sensor | Leuze (Germany) | ||
| Oversize Material Sensor | Leuze (Germany) | ||
| Melting Gum Device | Robatech (Switzerland) | Food Grade |
| Electric Cabinet | PLC Controller | Chinese Famous Brand | Integrated, Intelligent |
| Frequency Convertor | Delta (Taiwan) | Motor Speed Control | |
| Circuit Breaker | Scneider (Germany) | ||
| Solid Relay | Omron (Japan) | ||
| Switch Power Supply | Omron (Japan) | ||
| Conveyor | Contact Area | PU | Food Grade |
| Frame | Stainless Steel | ||
| Servo Motor | Chinese Famous Brand | ||
| Servo Motor Control | Scheinder (Germany) |
