Discover the chocolate depositor machine for producing pralines, chocolate balls, eggs, and custom-shaped chocolates. Compatible with PC and silicone moulds, with PE mould customization available. Integrates with mould feeders, heaters, vibrators, cooling tunnels, and demoulders for automated production lines.

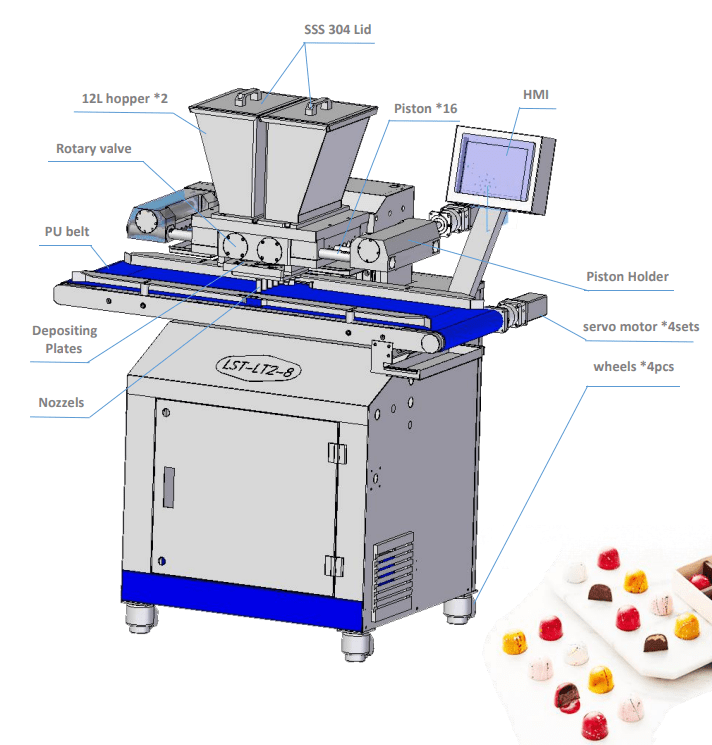

This depositing machine is able to make generally all kinds of chocolates including pralines, balls, eggs and product with special features. You can either use chocolate PC mould or silicon mould on this machine. It can be customized for PE moulds as well. This mini depositor usually works with other devices to make an automatic line for making different products. Such as mould feeder, mould heater, vibrator, cooling tunnel, demoulder, etc.
| Model | IA-120/JZJ |
| Brand | IACHIEVE |
| Pistons | Standard 2*8 φ20MM Pistons |

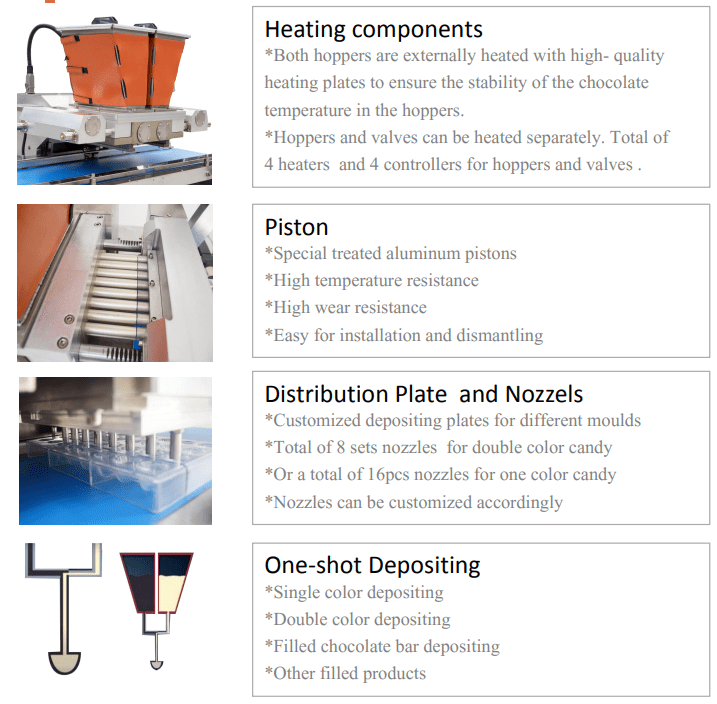

| Heating | Separate electric heating elements for hopper and valve |
| Conveyor Belt | Removable PU conveyor belt |
| Discharging | Automatic hopper discharging |
| Drive Motor | 4 sets of 0.4kw servo motors |
| PLC | Standard Delta PLC |
| Despositing Amount | 25-25g/piston/shot, max 400g/shot |
| Productivity | 50-120kg/h |
| Power Supply | 220v Single Phase 50/60Hz |
| Package Size | 1.26 x 0.84 x 1.66m / 400kg |
