DESCRIPTION:
It’s can automatically perform various procedures such as meat filling, forming and output and form a fully automatic prepared food line when connects with the battering machine, frying machine, cooking machine, instant freezer and packing machine, sharing the good features of high production capacity and stable quality. Endless patterns can design for your products: round, square, ellipse, triangle, heart and some other pattern such as cartoon, star.
CHARACTER:
- Equip with safety switch
- Equip with paper interleave
- SUS304 Stainless Steel
- Mold confirm to food grade
- More shape of mold to choose
- Saving labor and high efficiency
- Stable output and uniform product
PRODUCT SPECIFICATION & FEATURES:
| Model | IA-300/CXJ |
| Product Capacity | 100-300kg/h |
| Product Thickness | 6-19mm (Adjustable) |
| Product Maximum Size | 160mm |
| Tank Capacity | 35-40kg |
| Belt Width | 230mm |
| Belt Speed | 7m/min |
| Power | 0.55kw |
| Overall Dimension | 1500 x 600 x 1400mm |
| Package Dimension | 1700 x 800 x 1600mm |
| Net Weight | 300kg |
| Gross Weight | 460kg |
| Working Voltage | 220v |
| Material | Stainless Steel 304 |
BURGER MACHINE STANDARD CONFIGURATIONS:
| ITEM | PICTURES | DESCRIPTION |

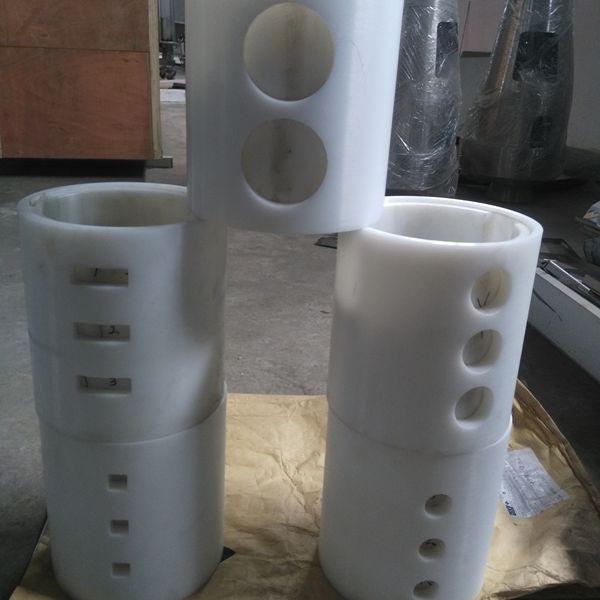

| 1. MOULD |  |
Mould PE material is confirming to HACCP standard, it is no harmful to body. it can design a lot of shape according to customer requirements. |

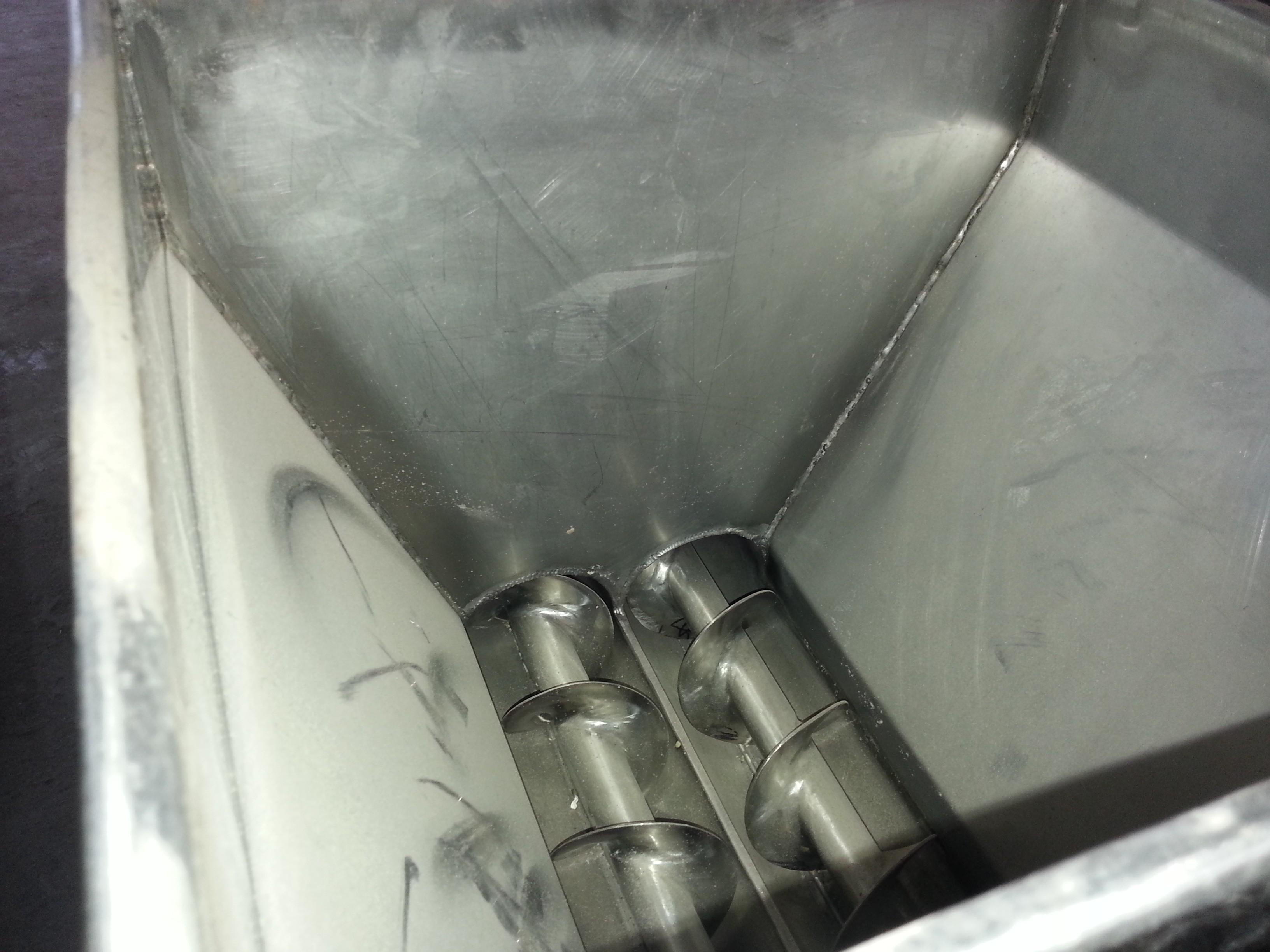

| 2. Feed Hopper |  |
It can reduce damage to food material by using screw feed. |

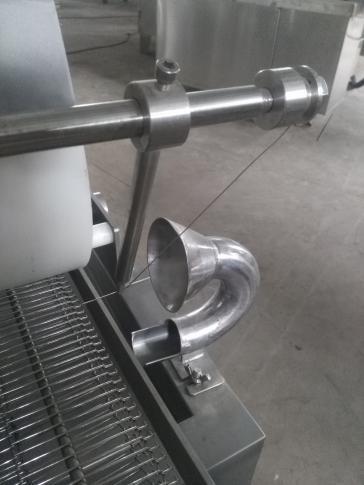

| 3. Spraying water system |  |
It can remove slag on the stainless-steel wire by spraying water system |
