Description
Design process: (mineral water)
Raw water → source water pump → mechanical filter → activated carbon filter → precision filter → pretreatment water storage tank → pressurization/
Cleaning pump → hollow ultrafiltration host device → pure water tank → transfer pump → sterilization → filling line
DESCRIPTION:

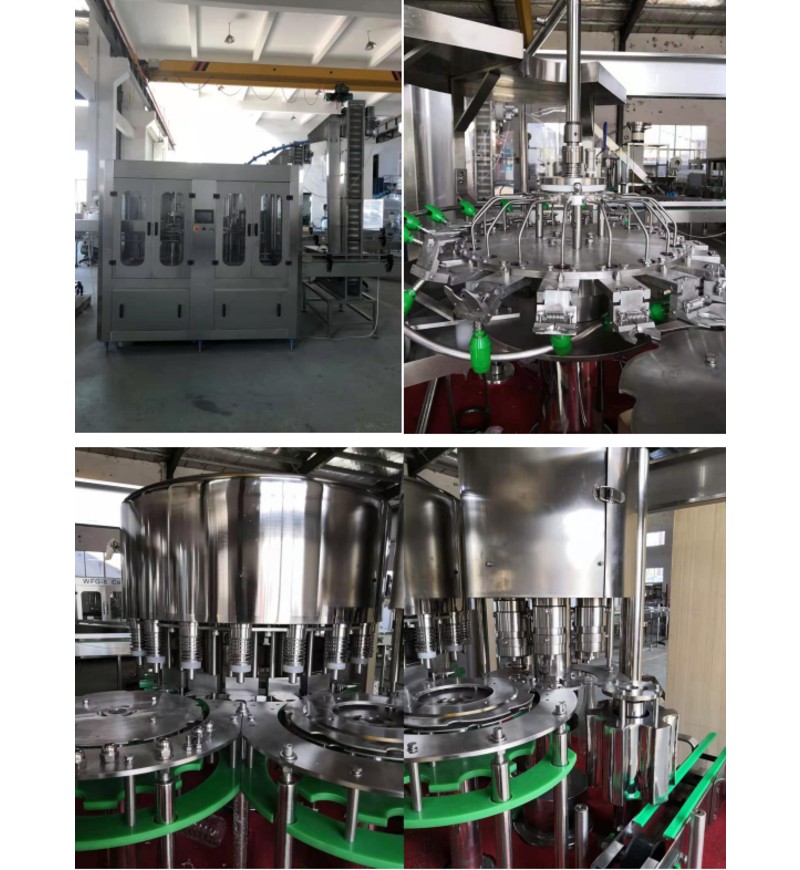

This machine is a high-speed rotary bottle washing, filling and capping integrated machine. The bottle washing machine is a rotary bottle washing machine, and the bottle clamp is equipped with self-locking
Structure to ensure stable and reliable bottle grabbing;
Equipped with medium conversion device and opening and closing devices, so that the rinsing time can be adjusted, and the filling adopts German high-precision mechanical filling Technology, fast filling speed, high liquid level accuracy, guide rod type centering, pre-cover function, positioning and conveying of the bottle mouth of the whole machine,
The in and out of bottles are stable and reliable.
The material level and back pressure in the filling tank are automatically controlled, and the working status and required parameters can be displayed and operated on the control cabinet.
Make it easy.
This machine adopts frequency conversion and stepless speed regulation. The whole machine adopts PLC industrial computer control. It has bottle filling and no bottle filling.
Function: The cap screwing machine adopts magnetic cap screwing and has overload protection function.
Depend on the main transmission adopts the combination of toothed belt and gear box open transmission, which has high efficiency and low noise; the whole machine adopts fully automatic centralized lubricating.
TECHNICAL PARAMETER:
| Model | AI8-8-3/WFC |
| Brand | IACHIEVE |
| Number of stations | Rinse 8, Filling 8, Screw cap 3 |
| Production capacity | 3000 bottles/hour (400ml) 1500 bottles/hour (900ml) 800 bottles/hour (1800ml) |
| Suitable bottle | 400-900-1800ml |
| Air source pressure | 0.4Mpa |
| Air consumption | 0.4m3/min |
| Washing water pressure | 0.2 Mpa |
| Bottle flushing water consumption | 0.3 tons/hour |
| Filling water consumption | 1.2 tons/hour |
| Whole machine power | 2.5kw |
| Dimension | 2000 x 1800 x 220 mm |
| Weight | 2100kg |
ELECTRICAL CONTROL:
| Operation Touch Screen | Taiwan Weilun |
| Host Inverter | Japan Mitsubishi |
| Host PLC controller | Japan Mitsubishi |
| Photoelectric sensor switch | South Korea Alto Nicks |
| Pneumatic components | Airtac Taiwan |
