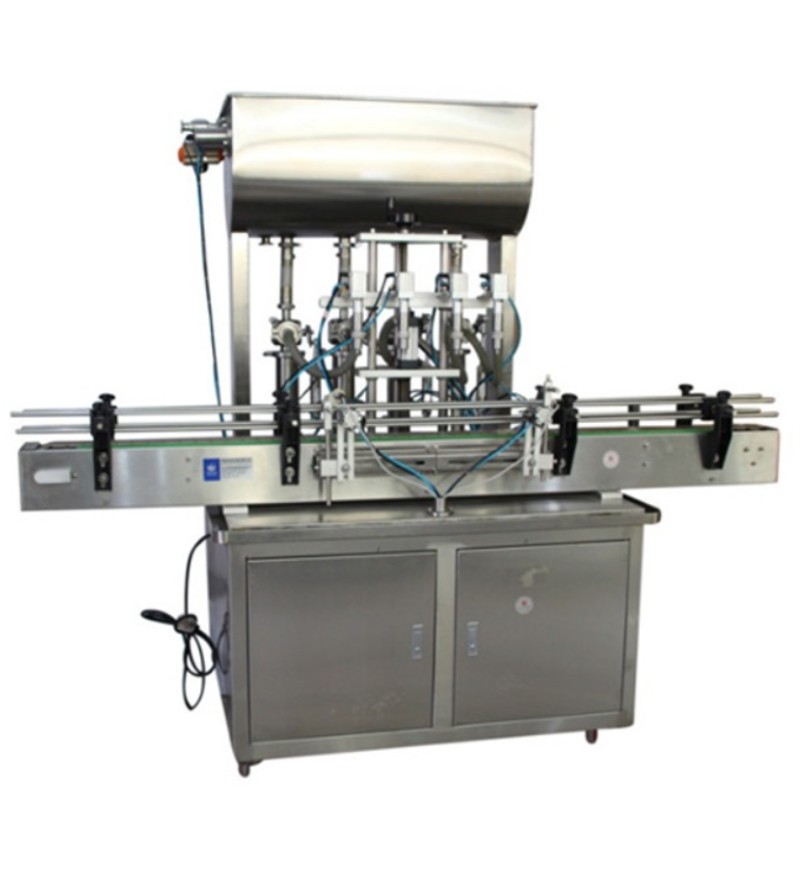

4 Nozzle Piston Type Filling Machine

Description

IA Series machine apply to filling different fluid, and adopt pneumatic piston to raise the pressure. Measuring by the volume, the switch controls the piston pushing route, ensure the accurate measuring. The machine is vastly used to filling the fluid just like food, pharmacy, daily health products, pesticide, cosmetic and so on. This Linear bottle feeding, suitable for different specification, bottle type, and filling of the different-shaped bottle is also effective.

Advanced Design

use different containers to fill, can switch packing specification in few minutes;
pneumatic piston is the heart of the whole machine of unique design measurement precision can easily fix and clean
the biggest characteristic can also fill different viscosity fluid. One machine can execute fluid and semi liquids filling;
through the hand wheel turning adjust piston stroke, uniform large scope to ensure that each adjustment filling measurement head filling consistently;

Filling nozzles can as your capacity to choose it.
filling times can adjust it from 1 time to 4 times, no need change equipments can as you wish to expand the filling volume.

Precise Matering of the Control

The measuring errors can be controlled in + 1%, can reduce material loss for users to improve the economic benefit;
Each block bottom sets measuring trimming device, adjust the small deviation;
Control components are imported parts with international brand, to ensure use trouble-free;
Filling with enter bottles count function, only in canned under his head after all in place to container material filling, lack of bottle, no bottles no filling.

Technical Parameter

Model	IA-500P-GC/4
Brand	IACHIEVE
Filling range	≤50 – 500ml, 100ml-1000ml
Filling speed	10 to 30 bottles/minutes
Measurement accuracy	±1%
Rated power	0.75 kw
Working voltage	220V
Working pressure	5 ~ 7kg/cm2
gas consumption	0.5 m3 / minutes
Machine size	3500 x 900 x 1900mm
Material	SS304
