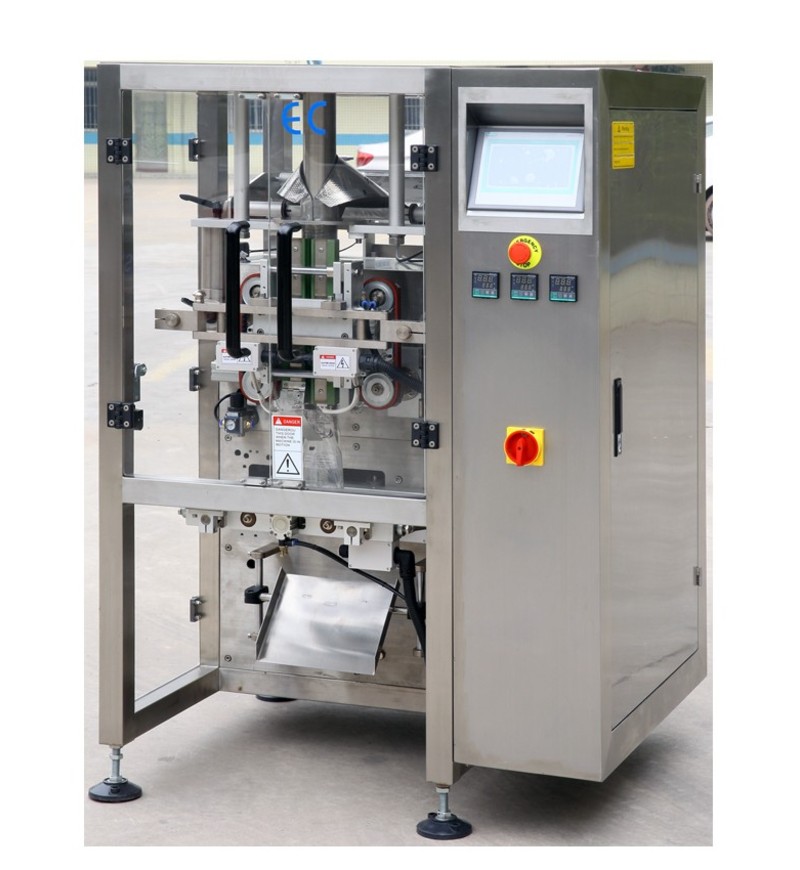

Description
MAIN PERFORMANCE AND STRUCTURE FEATURES:
- High precision structure for simple and easy operating and repairing.
2. PLC, step-motor, easy and accurate to set the bag length.
3. Own simple circuitry and outstanding function.
4. Be able to complete the whole procedure of filling, bagging, date printing, automatically.
It is widely used in packing filling of Cooking Oil, Chinese watermelon jam, cheese, jam, sauce, salad, lotion, liquid, semi liquid.
Equipped with input pump, the machine could automatically pack the products in high temperature that will improve the productivity, decrease the cost, and avoid making the twice packing.
TECHNICAL PARAMETER:
| Model: | IA-520L/YT |
| Brand | IACHIEVE |
| Packing speed | 10-30 bag/min (MAX 3000ml) |
| Bag Length | 80— 400mm |
| Bag width | 80—250mm |
| The max. roll film width | 480mm |
| Type of sealing | Pillow bag, 3-side sealing |
| Packing material | PE |
| Air consumption | 0.65mpa |
| Air consumption | 0.3m3/min |
| Power | 220V 50Hz 2Kw |
| Overall size | 1670(L)×1300(W)×1400(H)mm |
| Weight | 680KG |
MACHINE DETAILS:

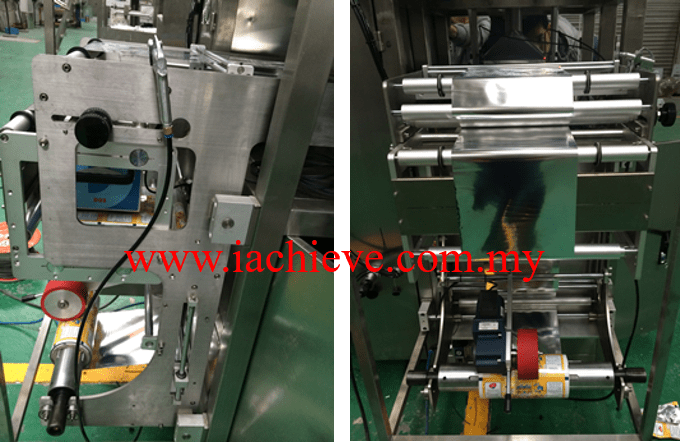

1. Whole pull film frame is stainless steel plate:

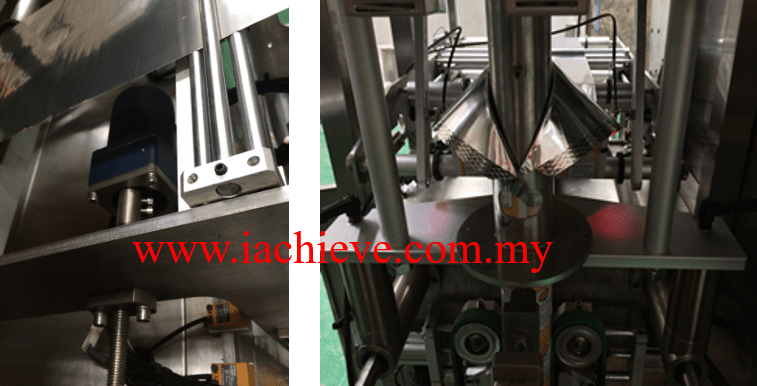

2. Pull film motor and pneumatic core shaft

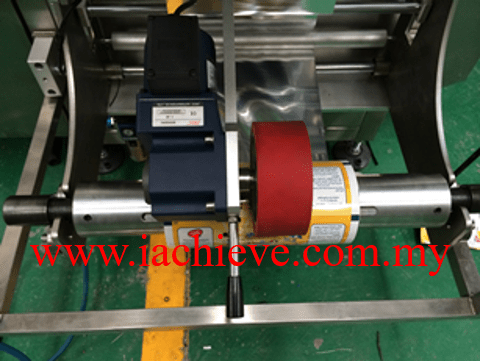

3. Corrective Actions motor and electronic eyes to rectify packing film
