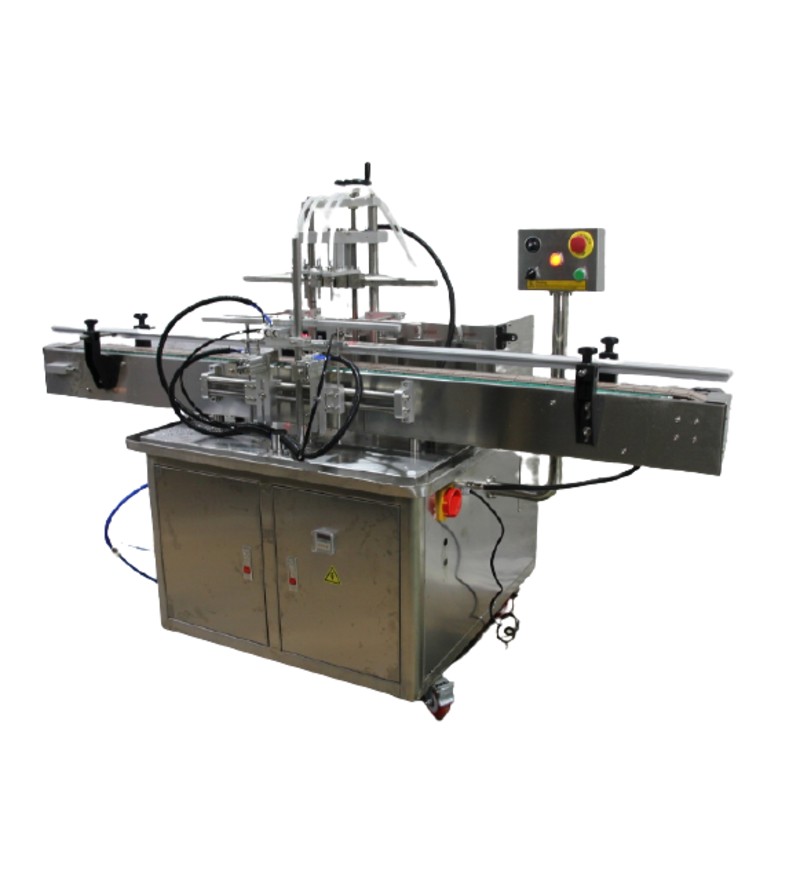

Technical Parameter
| Model | IA-4T/TCB |
| Brand | IACHIEVE |
| Voltage | 220v 50/60Hz |
| Air pressure | 0.5-0.7MPa |
| SS Material | SUS304 |
| Piston material | PTFE |

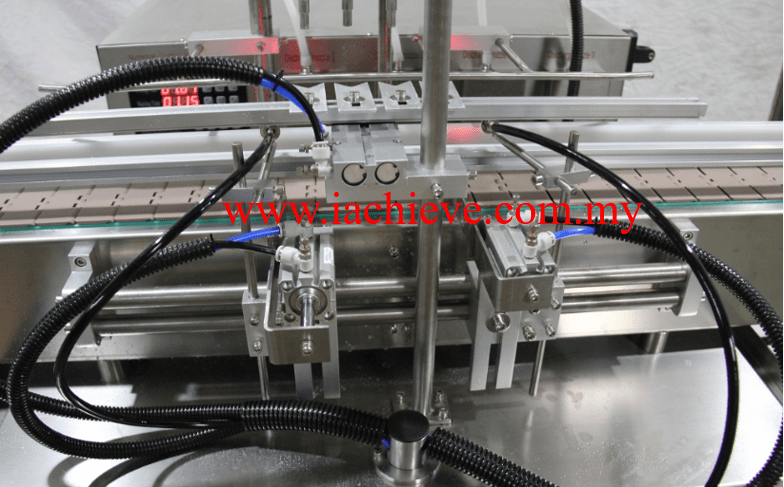

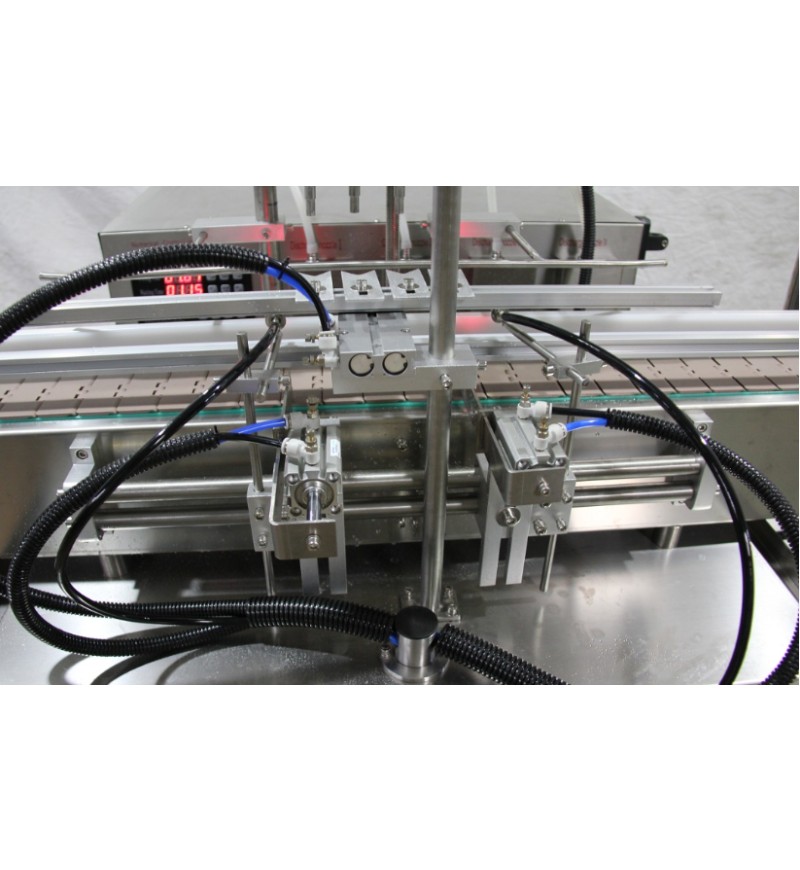

| Main cylinder | Airtac |
| PLC | Delta |
| Length of conveyor | 2M or 2.5M |
| Filling volume range | 10-100ML |
| Type of pump | Diaphragm pump |

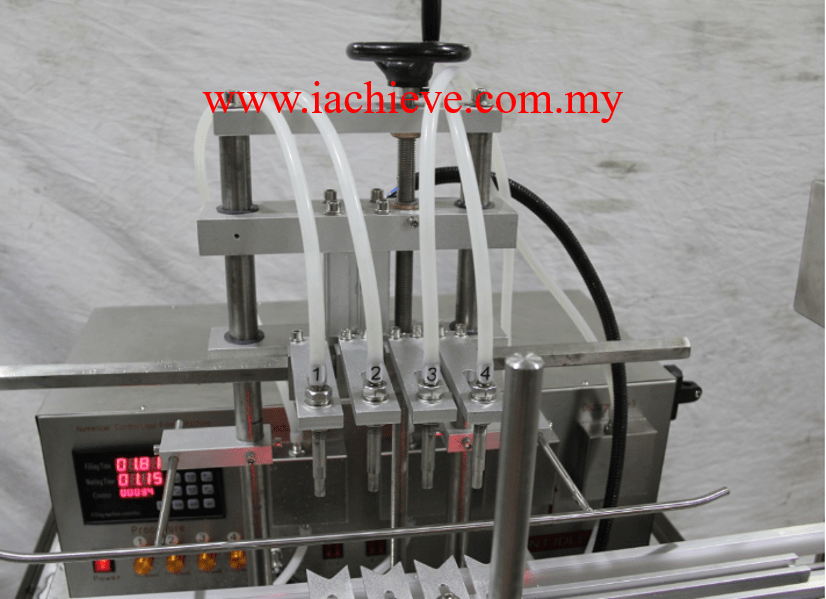

| Filling head | 4 |
| Filling speed | 16-30 bottles/min |
| Dimension | 2500 x 1050 x 1300mm |
| Weight | 350kg |
