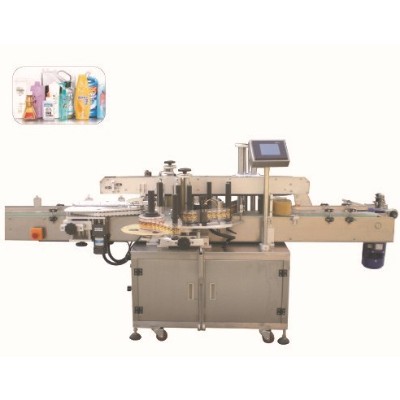

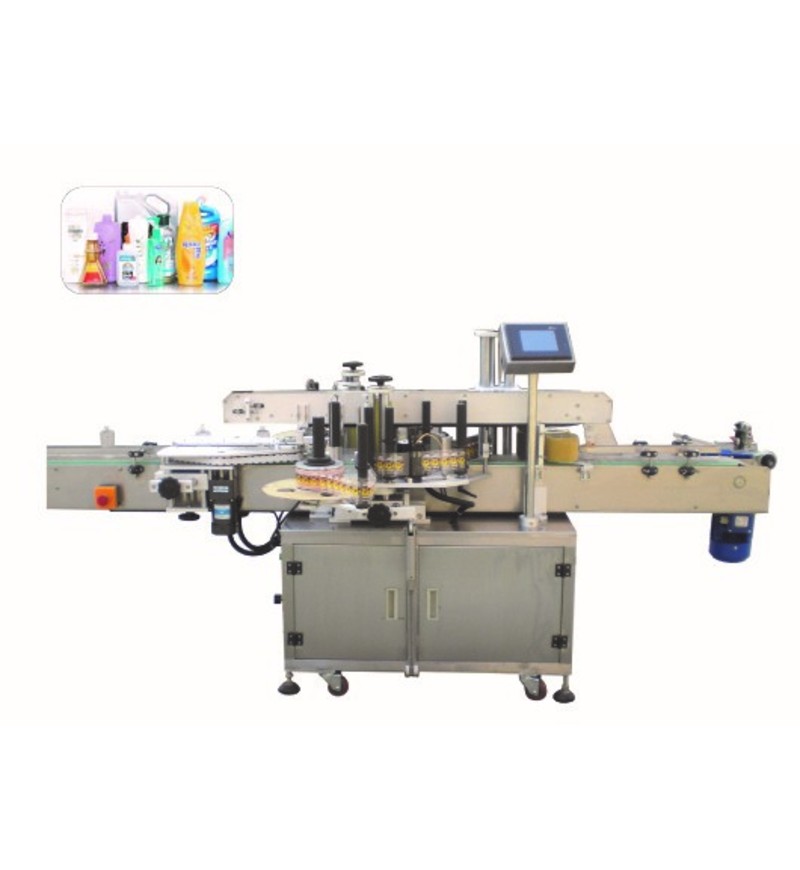

AUTOMATIC LABELLING MACHINE – SINGLE SIDE

SKU IA-150/TBJ-1 Category Tag

*This machine is only suitable for flat bottle / square bottle / round bottle (half)

Description

The IA Series Automatic Labeling Machine – Single Side is designed for single sides labeling on various shapes of bottles and containers, the machine applicable to the medicine, food, daily chemical and other industries in the round, square, flat bottles and other kinds of similar products.

The whole equipment is qualified with GMP requirements and made of SUS304 stainless steel and high-class aluminium alloy. The machine is adopt PLC control system combined with LCD touch screen , setting and operation is easy and clear. The labeling position of height can be adjusted as requirement, and the machine can be incorporated with a packing line or operated individually.



*Application industry: widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastics, printing and other industries; Powerful and versatile (square bottles, flat bottles, oval bottles, shaped bottles, round bottles can be used as usual).



The following are standard model technical parameters, other special requirements and functions, can be tailor-made.

Technical Parameter

Model: IA-150/TBJ-1

Voltage: 220V 50/60Hz

Power: 1kW

Bottle Type: flat bottle / square bottle / round bottle (half)

Labeling Size Flat & Square Bottle:  Width : ≥20mm

    Length: ≥20mm

                                                              Height: 20-350mm

Labeling Size Round Bottle:  Diameter :20-150mm

  Height     :10-350mm

Label Size Applicable: Width : 15-200mm

                                       Length: ≥10mm

Labeling Accuracy: ±1mm

Labeling Speed: 20-120 pcs/min (related to product size)

Inner Diameter of Label Roll: 76mm

Outer Diameter of Label Roll: 350mm

Machine Dimension: 2700L * 1500W * 1500H mm

Machine Weight: 250kg

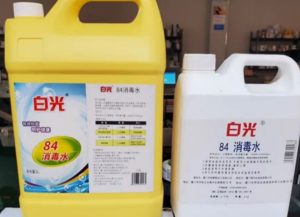

Product Application
