Rice & Sugar Packing Machine | 10-Head Weigher

Description

Application:

Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware, dumplings, vegetable, fruits, powder and sugar etc. which shape is roll, slice and granule

Technical characteristics:

PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, and finished in one operation.
Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance; belt is resistant to be worn-out.
External film releasing mechanism: simpler and easier installation of packing film.
Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.
Close down type mechanism, defending powder into inside of machine.

IA-1300W/AP including

Automatic vertical packing machine
10 heads weigher
Finished products conveyor
Z-shaped automatic material elevator
Stainless Steel Platform

Automatic vertical packing machine

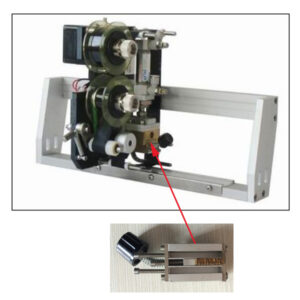

——-With code printer

Bag format:

Machine Details

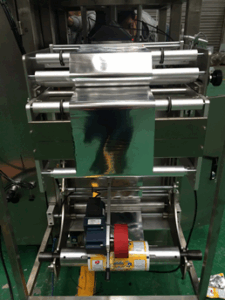

Whole pull film frame is stainless steel plate:

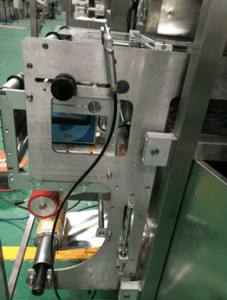

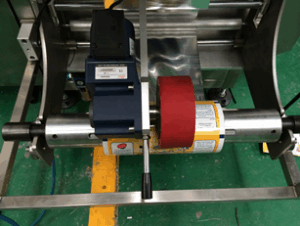

Pull film motor and pneumatic core shaft

Technical Parameter

Type

IA-1300W/AP

Pillow bag size

Bag length	80-300mm(L)
Bag width	60-200mm(W)

Stand bag size

Bag length	50-300mm(L)
Bag front width	50-120mm(W)
Bag side width	40-80mm

Max width of roll film

420mm

Packing speed

30-80bags/min

Measuring range

100g-1000g

Air consumption

0.65mpa

Gas consumption

0.3m³/min

Power voltage

220VAC/50Hz

Power

2.2 KW

Dimension

3800mm(L)*2500mm(W) *2750mm (H)

Weight

1210 Kg

Other Machine Details

10 heads weigher

Technical characteristics

Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.
High precision data-type weighing sensor realizes precise weighing.
Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.
IP65 grade water-proof and dust-proof design. It’s clear and sanitary with all stainless still parts. Full sealed design prevents accumulation of material and facilitates cleaning.
It can fine the opening and closing speed of hopper door according to the feather of items to be weighed, and prevent crushing and blocking of material.
with powerful digital automatic counting function. It can record the index for each batch such as total bag number; pass rate and difference of single bag, etc.

Technical parameters

Type	IA-10
Measure number	10
Range of single weighing	10-1000g
Quantity precision	0.5g-1g
Average tolerance of single bag	0.2-0.7g
Weighing speed	70bags/min
Hopper capacity	1300ml
Hopper type	Double hoppers without memory
Net/gross	300/370Kg
Overall size	(L)1680(W)1210(H)1140mm

Application

All kind of grain material, sheet material and abnormity material which such as candy, melon seeds, chips, peanuts, nut let, preserved fruit, jelly, biscuit, confect, dilatants foodstuff , hardware and plastic can be weighed by the ration .

Finished products conveyor
