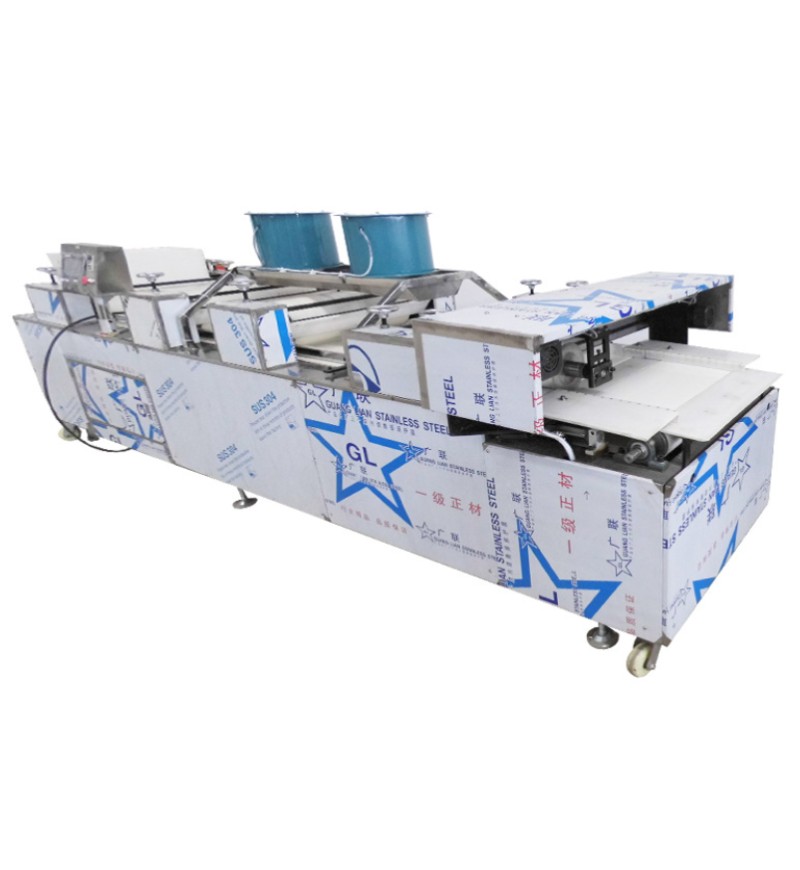

AUTOMATIC FORMING AND CUTTING MACHINE – ENERGY BAR

SKU IA-280/CXQKJ Category

Nutrition bar production line is continuously fed and consists of automatic flattening, automatic cross-cutting, and automatic vertical cutting; seven automatic flattening, moderate flattening density and uniform thickness; adopting frequency conversion adjustment, cutting size and forming squareness are good; the whole machine Continuous production and manual connection in the middle realize the fully automatic and intelligent operation of the nutrition bar production line.

Features

The production line is composed of heat preservation mixer, flattening machine, cross-cutting machine, vertical cutting machine and other parts, and automatic production. The appearance of the whole machine is made of 304 stainless steel material, which is suitable for automatic forming of coarse grain products such as rice cracker, shaqima, nut crisp, egg vetch, corn crisp and so on.

  1. Spreading, leveling and cutting into pieces
  2. Equipped with multiple leveling structure, the pressing is even and the thickness is uniform
  3. Frequency conversion speed regulation can meet your different product needs
  4. Automatic cutting, time-saving, labor-saving, economical and convenient

Technical Parameters

Model IA-280/CXQKJ
Brand IACHIEVE
Power 4kw
Voltage 220v Light, 380v
Capacity 200-250kg/hour
Weight 1000kg
Dimension 4500 x 1300 x 1200mm

Product Application
