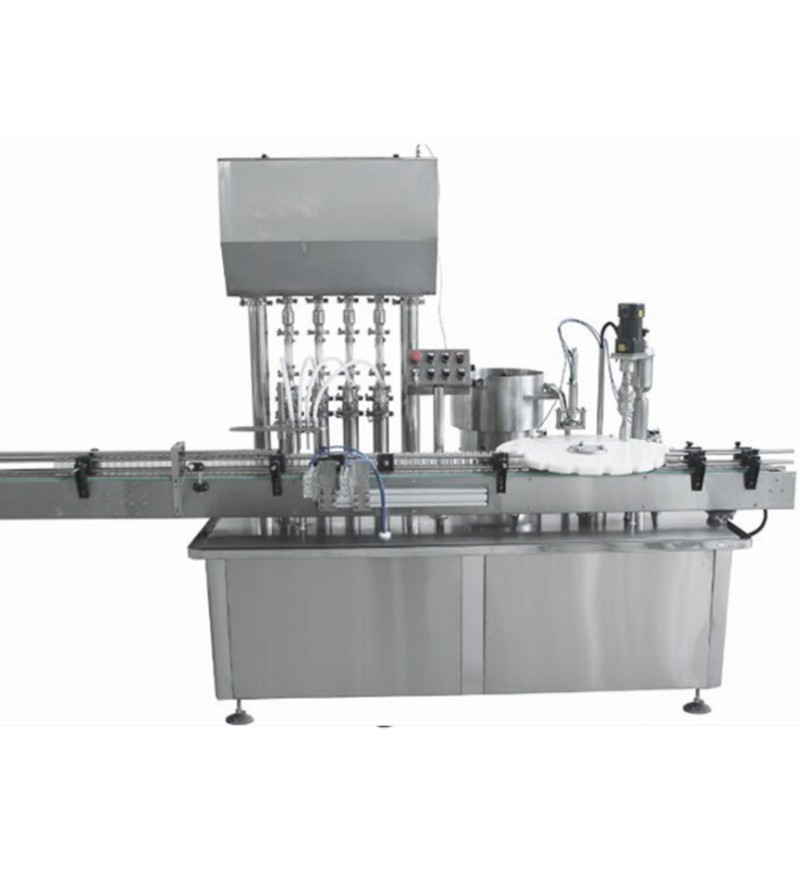

Paste Filling & Rotary Capping Machine

SKU IA-1000L/GC-4 + CE-1/XGJ Categories , Tag

Discover the paste filling and rotary capping machine for honey, syrup, jam, peanut butter, tomato sauce, and other thick products. Features PLC touchscreen control, piston filling, and precise dosing.

Description

Adopted piston quantitative, mechanical and electrical, pneumatic in one, electrical and pneumatic components used well-known brands, from the touch screen, PLC control, rational design, compact structure, beautiful appearance, with stable and reliable performance, filling accuracy, adaptability, simple operation, Easy maintenance and so on. Automatic paste filling machine is widely used in a variety of semi-fluid, paste, thick body, thick sauce, sauces and a variety of materials containing the filling of granules. Such as syrup, pulp drinks, honey, sesame, tomato sauce, jam, peanut butter, chili sauce and a variety of paste filling.

Technical Parameter of Filling Machine

Model IA-1000L/CG-4
Brand IACHIEVE
Voltage AC220v
Power 0.8kw
Filling range 50-100ml / 100-300ml / 300-1000ml / 1000-5000ml (can select)
Production Speed 30-50bottle/m
Air pressure 0.4-0.6Mpa
Suitable bottleneck diameter ≥50mm
Filling heads 4 (2/4/6/8) can select

Technical Parameter of Capping Machine

Model IA-1/XGJ
Brand IACHIEVE
Voltage AC220v
Power 1.5kw
Cap diameter 20-60mm
Production Speed 15-30bottle/m
Air pressure 0.4-0.6Mpa
Suitable bottleneck diameter ≥50mm
Dimension (L x W x H) 2500 x 1400 x 1600mm

Product Application
